Good Service 2.05-2.25kw Huatao Recycled Cardboard Production Line Corrugated Board Pre Heater Cylinder with ISO 9001: 2008

Product Description

Product Description

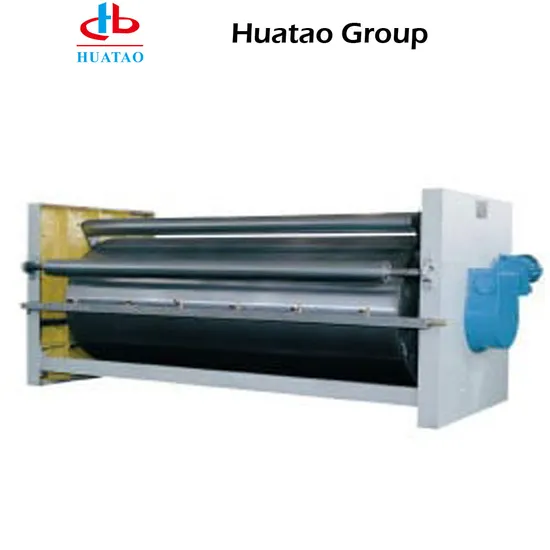

The preheater is divided into two layers, three layers, and multiple layers, the diameter of the preheating roller is ¢600 mm, ¢800 mm, Φ900mm, Φ1000mm optional, the effective width is 1400 mm-2500 mm, the ESC wrap angle, the adjustment range is 60 degrees - 270 degrees, The surface of each roller is precisely ground and plated with hard chrome, which is smooth and durable. It adopts the disc head or flat head design to ensure that the base paper is heated evenly. It can be configured in single-layer or multi-layer. It can be composed of two, three, and four preheaters.
Product Parameters

Width	Dimension (LxWxH) mm	Weight T	Gross Power kW
1400	2590 x 1050 x 1250	2.1	2.05
1600	2790 ×1050 ×1250	2.3	2.05
1800	2990 ×1050 ×1250	2.5	2.05
2000	3190 x 1050 x 1250	2.7	2.05
2200	3390 x 1050 x 1250	2.9	2.25

Product Features
1. Pre-heater diameter 1000 mm/1100 mm/1200 mm. butterfly head makes heating equal.
2. Pre-heater designed to be rotary at a fixed speed, which makes the temperature of the surface equal and passes the heat to the paper completely, and also reduces heat loss and makes the paper not easy to be broken off.
3. Flange is used for the steam rotary joint.
4. Made according to a national standard of pressure container I, a test certificate is followed.
5. Paper guide roll: φ 140 mm, one fixed, the other travel outside of preheating roll to control the heating surface. the parallelism of the travel paper guide roll can be adjusted.
6. With 0.55 kw/0.75 kw motor and 2 sets of worm wheel decelerator.

Detailed Photos
Huatao Service
1. Your inquiry related to our product & price will be replied to within 24 hours.
2. Rich experience in packaging machinery parts.
3. Bulk purchase quantities
4. Share the competitive prices with customers.
5. Good quality control and after-sale support.
6. Guaranteed delivery time.

---
