Basic Info.
Type
Knee-and-Column Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
GS, CE, ISO 9001
Production Capacity
2000PCS/Year
Product Description
XL6136 Milling Machine
Features:
1.X,Y,Z axes guideways are hardened and precision ground. Y,Z axes are extra-wide rectangle guideways.
2.X,Y,Z axes can be manual feed and covergent power feed.

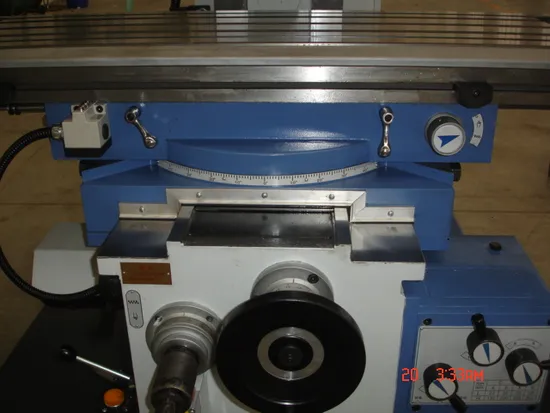

3.The worktable can rotale ±450.
Main Accessories
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
| Middle sleeve(ISO50/MS4) | Digital readout system(DRO) |
| Lnner-hexagon spanners | Machine vice(200mm) |
| Dead head spanners | 58pcs/set clamping kits(M16) |
| Mill arbor(27mm,40mm) | Horizontal/vertical rotary table(TSL320) |
| Draw bar | Universal dividing head(F11 125A) |
| Cooling system | Vertical mill head |
| Lubricate system | Middle sleeve(MS4/MS3,MS4/MS2) |
| Work lamp | Reduction sleeve(ISO50/MS4,MS4/MS3,MS4/MS2) |
| | Mill arbor(22mm,32mm) |
Main technical parameters
| Specification | Unit | Technical parameters |
| Spindle taper | | 7:24 ISO50 |
| Distance from spindle center Line to worktable | mm | 0-420 |
| Distance from spindle center Line to arm | mm | 175 |
| Spindle speed | rpm | (12steps )60-1800 |
| Worktable size | mm | 1250×360 |
| Worktable max.rotate angle | | ±450 |
| Worktable travel | Longitudinal | Manual | mm | 600 |
| Power | mm | 600 |
| Cross | | 250 |
| Vertical | mm | 420 |
| Worktable Longitudinal/Cross power feed | | 8steps 22-550mm/min
Rapid:810mm/min |
| Worktable elevating power feed | mm/min | 8steps 22-550mm/min
Rapid:810mm/min |
Worktable"T"slot | Number | | 3 |
| Width | mm | 18 |
| Distance | mm | 80 |
| Ram travel | kg | 300 |
| Main motor | kw | 4 |
| Worktable power feed motor | kw | 0.75 |
| Coolant pump | kw | 0.09 |
| Coolant flow | L/min | 25 |
| Overall dimension(L×W×H) | mm | 1880×1700×1830 |
| Net weight | kg | 2000 |
>>
