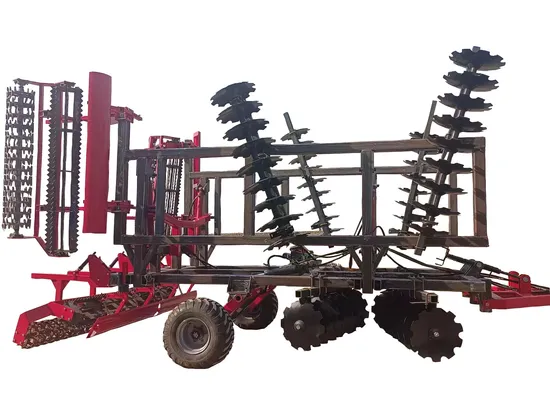

Agriculture Machine 7m 64 Disc Harrow

Product Description

Product Description
The traction type hydraulic offset heavy disc harrow is mainly suitable for smashing the stubble before ploughing, breaking the surface knot, cutting the straw into the field, breaking up the clods after ploughing, leveling and protecting the hoe, etc., and can also replace the plough on the mature land to carry out the soil ploughing operation. The work efficiency is high, the power utilization is reasonable, and the ability to break up the soil is strong. After the working, the surface is smooth and the soil is loose. It has strong adaptability to the filed with heavy soil, wasteland and weeds.
Product Parameters

Model	Number of disc	Size of disc	Working width (mm)	Working depth (mm)	Weight (kg)	Matched tractor (hp)	Note (Bearing Assembly)
1BZY-1.8	16	610x6	1800	150-200	1420	70-85	Grease or oil bath
1BZY-2.0	18	660x6	2000	180-220	1580	85-100	Grease or oil bath
1BZY-2.2	20	660x6	2200	180-220	1660	100-120	Grease or oil bath
1BZY-2.5	24	660x6	2500	180-220	2100	125-150	Grease or oil bath
1BZY-3.0	28	660x6	3000	180-220	2300	150-180	Grease or oil bath
1BZY-3.5	32	660x6	3500	180-220	2850	150-180	Grease or oil bath
1BZY-4.0	36	660x6	4000	180-220	3100	180-200	Grease or oil bath

Detailed Photos
Packaging & Shipping

---
