Industrial Use 15-25t/H Drum Type Wood Chippers in Large Projects

Product Description

Industrial Use 15-25T/H Drum Type Wood Chippers in Large Projects Product Description Introduction of drum wood chipper:

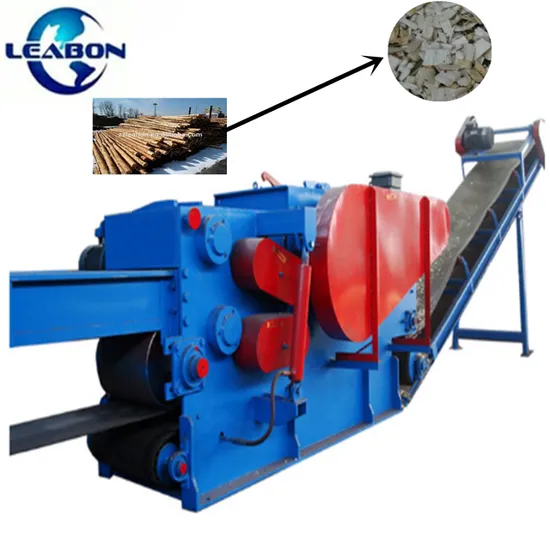

The wood drum chipper is the special equipment for producing the perfect chips. It is used in paper plants, particle board plants, fiber-broad plants, chip production; It is also suitable for chipping of branches, twigs and planks. Product Structure
The machine is made up of body, knife roller, the upper and lower feed roller,conveyor belt,hydraulic system.
The machine adopts high strength steel plate welded together, is the supporting basis of the whole machine.
Install two or three, four throwing knives in the knife roller. Using the fly-knife bolt specially manufactured to fix these fly-knives on the knife roller through the pressure block. According to different thickness of cutting materials, the upper feed roller can fluctuate within a certain range with the aid of hydraulic system. Qualified wood chips fall down through the sieve holes, and are discharged from the bottom; large wood chips will be cut within the machine. Product Parameters Technical parameter of drum wood chipper:

MODEL	BX-318
Power of main motor( kw)	110
Q'T'Y of flying blades ( PCS )	4
Opener size ( mm )	680*270
Input max diameter ( mm )	250
Length of chips ( mm )	15-25
Capacity( T/h )	15-25
Dimension of main machine ( mm )	35x2.18x1.8
Weight of main machine ( kg )	8320
feeding Belts conveyor (m)	6* 0/7
Discharge belt conveyor(m)	10*0.8

Spare parts
Raw Material&Final Product Raw material:
Drum chipper can process woods with suit diameter,timber harvesting,wood cutting remains (branches),wood processing remains(saw mill residue) and even other no wood material (reed,bamboo).
Final product:
Different size of wood chips
Using in production line:
It can be used in the wood pellet production line to crusher the raw material. Make the size of raw material become small.
Note: If you need this wood chipper, pls contact me .

---
