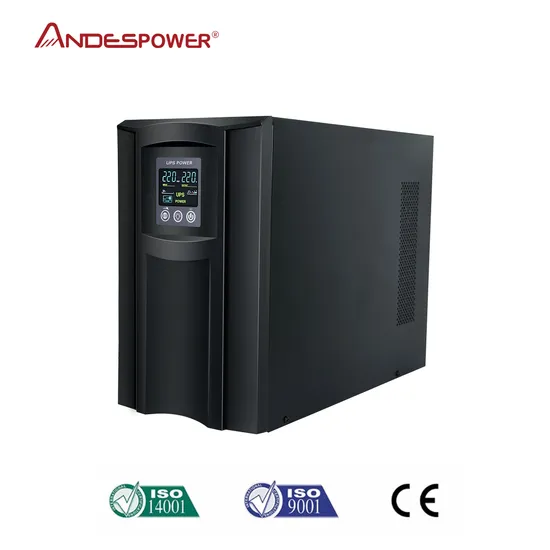

| MODEL | UPS-AP1K(L) | UPS-AP2K(L) | UPS-AP3K(L) | |
| Capacity | 1000VA/700W | 2000VA/1400W | 3000VA/2100W | |
| INPUT | ||||
| Voltage Range | 145~275VAC±5% | |||
| Frequency Range | 50Hz-60Hz | |||
| OUTPUT | ||||
| Output Voltage | 220VAC | |||
| AC Voltage Range | ±10% | |||
| Frequency Range(Batt.Mode) | 50Hz±0.25Hz or 60Hz±0.3Hz | |||
| Overload | 105%-110%:UPS beep alarm, do not shut down. | |||
| 110%-130%:auto shut down after 30 seconds | ||||
| >130%:auto shut down immediately | ||||
| Transfer Time | ||||
| Waveform(Batt.Mode) | Pure Sine Wave | |||
| BATTERY | ||||
| Standard Model | Battery Type | 12V7Ah | ||
| Numbers | 2 | 4 | 6 | |
| Charging Current(Max.) | Max:1A | |||
| Charging Voltage | 27.3VDC±1% | 54.7VDC±1% | 82.0VDC±1% | |
| Long-run Model | Battery Type | 12V,AH depending on applicant | ||
| Numbers | 3 | 6 | 8 | |
| Charging Current(Max.) | 5A | |||
| Charging Voltage | 27.4VDC±1% | 82.1VDC±1% | 109.4VDC±1% | |
| PHYSICAL | ||||
| Standard Model | Dimension,LxWxH(mm) | 360x147x220 | 440x192x340 | 440x192x340 |
| Net Weight(kgs) | 11.9 | 22 | 27.9 | |
| Long-run Model | Dimension,LxWxH(mm) | 360x147x220 | 440x192x340 | 440x192x340 |
| Net Weight(kgs) | 8.5 | 16 | 18.2 | |
| ENVIRONMENTAL | ||||
| Humidity | 20-90%RH @ 0-40ºC(non-condensing) | |||
| Noise Level | Less than 55dBA@1 Meter | |||
| MANAGEMENT | ||||
| Smart RS-232 | Support Windows 2000/2003/XP/Vista/2008,Windows7/8,Linux,Unix,and MAC | |||
| Optional SNMP | Power management from SNMP Management and web browser | |||
