Basic Info.
Sprinkler Installation Type
Internal Thread Connection
Application Scene
Agricultural Production
Product Description

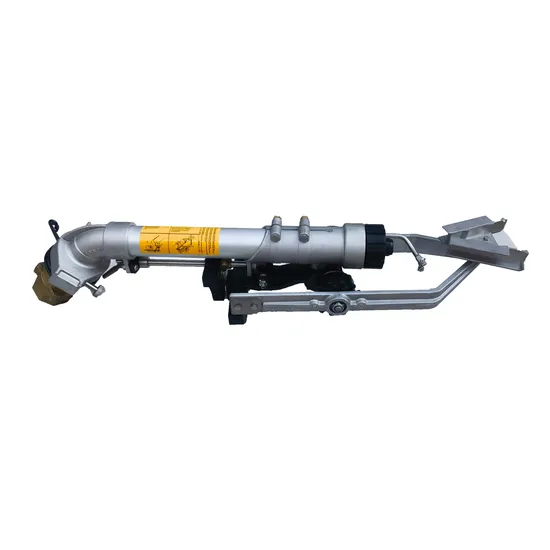

Model: 10670 44° fixed angle
Jet Length: 27-55m
Pressure: 3.5-8.0 bar
Capacity: 10.4-73.7m3/h
Nozzle: 12/14/16/18/20/22/24/26mm
| NOZZLE (mm) | PRESSURE (bar) | CAPACITY (l/min) | JET LENGTH (m) | MAX HEIGHT (m) | RADIUS@HMAX (m) |
| 12 | 3.5 | 173.2 | 27.1 | 12.0 | 7.2 |
| 4.0 | 185.1 | 28.9 | 13.0 | 7.8 |
| 4.5 | 196.4 | 30.0 | 14.0 | 8.4 |
| 5.0 | 207.0 | 31.6 | 14.5 | 8.7 |
| 6.0 | 226.7 | 33.3 | 16.0 | 9.6 |
| 7.0 | 244.9 | 34.0 | 17.0 | 10.2 |
| 8.0 | 261.8 | 35.1 | 17.5 | 10.5 |
| 14 | 4.0 | 252.0 | 31.5 | 13.5 | 8.1 |
| 4.5 | 267.3 | 33.0 | 14.5 | 8.7 |
| 5.0 | 281.7 | 34.4 | 15.0 | 9.0 |
| 6.0 | 308.6 | 36.5 | 16.5 | 9.9 |
| 7.0 | 333.3 | 38.0 | 17.5 | 10.5 |
| 8.0 | 356.3 | 38.7 | 18.5 | 11.1 |
| 16 | 4.0 | 329.1 | 33.2 | 14.0 | 8.4 |
| 4.5 | 349.1 | 34.1 | 15.0 | 9.0 |
| 5.0 | 367.9 | 35.5 | 15.5 | 9.3 |
| 6.0 | 403.1 | 37.7 | 17.0 | 10.2 |
| 7.0 | 435.4 | 40.2 | 18.0 | 10.8 |
| 8.0 | 465.4 | 41.1 | 19.5 | 11.7 |
| 18 | 4.0 | 416.5 | 37.4 | 14.5 | 8.7 |
| 4.5 | 441.8 | 38.5 | 15.5 | 9.3 |
| 5.0 | 465.7 | 39.4 | 16.0 | 9.6 |
| 6.0 | 510.1 | 41.5 | 17.5 | 10.5 |
| 7.0 | 551.0 | 44.1 | 19.5 | 11.7 |
| 8.0 | 589.1 | 45.3 | 20.0 | 12.0 |
| 20 | 4.0 | 514.2 | 39.7 | 15.0 | 9.0 |
| 4.5 | 545.4 | 40.6 | 16.0 | 9.6 |
| 5.0 | 574.9 | 42.2 | 17.0 | 10.2 |
| 6.0 | 629.8 | 44.0 | 18.5 | 11.1 |
| 7.0 | 680.3 | 46.8 | 20.5 | 12.3 |
| 8.0 | 727.2 | 48.8 | 21.0 | 12.6 |
| 22 | 4.0 | 622.2 | 41.5 | 15.5 | 9.3 |
| 4.5 | 660.0 | 43.9 | 16.5 | 9.9 |
| 5.0 | 695.7 | 45.5 | 17.5 | 10.5 |
| 6.0 | 762.1 | 47.8 | 19.0 | 11.4 |
| 7.0 | 823.1 | 49.7 | 21.0 | 12.6 |
| 8.0 | 879.9 | 51.0 | 22.0 | 13.2 |
| 24 | 4.0 | 740.5 | 43.5 | 15.5 | 9.3 |
| 4.5 | 785.4 | 45.1 | 17.0 | 10.2 |
| 5.0 | 827.9 | 47.5 | 18.0 | 10.8 |
| 6.0 | 906.9 | 49.8 | 19.5 | 11.7 |
| 7.0 | 979.6 | 51.9 | 21.5 | 12.9 |
| 8.0 | 1047.2 | 52.7 | 22.5 | 13.5 |
| 26 | 4.0 | 869.0 | 44.9 | 16.0 | 9.6 |
| 4.5 | 921.8 | 47.0 | 18.0 | 10.8 |
| 5.0 | 971.6 | 48.7 | 20.0 | 12.0 |
| 6.0 | 1064.4 | 51.9 | 21.5 | 12.9 |
| 7.0 | 1149.6 | 53.3 | 22.5 | 13.5 |
| 8.0 | 1229.0 | 54.4 | 23.0 | 13.8 |
