380V/220V 3 Phase Crane Electric/Manual Chain Hoist with Electric Trolley

Product Description

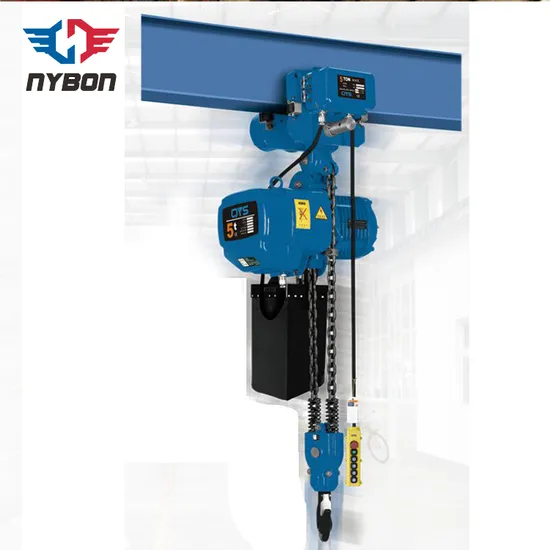

380V/220V 3 Phase Crane Electric/Manual Chain Hoist with Electric Trolley
Electric Chain Hoist-Introduction:
Electric Chain Hoist with Trolley is a light and small lifting equipment.
It consists of electric motor, transmission mechanism and sprocket.And all produced according to international standards.
The body is beautiful in appearance and durable.
The internal gears are all quenched at high temperatures,which increases the wear resistance and toughness of the gears.
The most advanced international technology is used,and the workmanship is fine and the gears are tightly fitted.
Electric Chain Hoist-Daily Maintenance:
1.When the operation time for the hoist gearbox reach to 500 hours,it is necessary to check the amount of lubricating oil .
The lubricating oil should be checked regularly in the third month. If it is insufficient, it needs to be refueled.
2.When using a chain electric hoist outdoors, rainproof equipment should be installed.
3.For the maintenance of the chain electric hoist chain,the chain should be lubricated with oil.Please apply the oil to the high dust
factory,and regularly remove the foreign objects in the chain and the limit guide group to ensure the smooth running of the chain.
4.When the chain hoist is not used for a long time, it should be rust-proofed, cleaned and maintained,
and run up and down for 1-3 minutes to maintain its performance.
Electric Chain Hoist-Features:
Advanced performance structure, small size, light weight, reliable performance, convenient operation, wide application range,
very convenient for lifting heavy objects,
loading and unloading work, maintenance equipment, lifting goods, it can also be installed in suspended I-beam, curved track,
Lifting heavy objectson the cantilever crane guide rail and fixed lifting point
Main Technical Parameter

Loading Capacity	0.5 ~ 32ton
Lifting Height	3 ~ 50m or customized
Lifting Speed	2.8 ~ 7.2 m/min or customized;Variable frequency speed
Working Class	M3 ~ M7
Power Supply	AC 3Phase 220//230380/400/415/440V 50/60Hz
Motor Protection Class	IP54
Working Temperature	-20 ~ 45ºC
Insulation Grade	F
Control Voltage	24v,36v,48v
Safety Device	Buffer,current overload protection,overload device,power failure protection
Control Way	Ground handle control(Push button),wireless remote control
Application Area	Factory,workshop,warehouse,power station,etc.

Application places:
1, Extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly
2, Installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods
3, It can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes to hoist different items and so on.
Company Profile
Nybon Machinery is a leader in providing bridge cranes,gantry crane,port crane,ship cranes,electric winches, hydraulic winches, diesel winches, electric hoist and relative components for shipyard,automotive, material handling, specialty machinery, and workshop solutions. Our diverse portfolio also includes a wide range of lifting products for industrial, commercial and specialty applications.Our company also welcome O E M and ODM orders.
NYBON, JUST FOR YOUR TRUST! Certifications
Packaging & Shipping
FAQ
1. Q: What's your MOQ?
A: 1 Set;
2. Q: What's your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
3. Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
4. Q: What's your warranty period?
A: 12 months from winches accepted;
5. Q: Do you have engineer oversea installation service?
A: Yes; We have;
6. Q: What kinds of products do you have?
A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist;
Radial/Flat Gate Hoist; Steel Gate; etc.
7. Q: Do you provide lift tools?
A: Yes,we can provide any kinds of lift tools such as lift sling belt, lift clamp,grab, magnet,pulley blocks, hook, lock catch, wire rope,
fiber rope,etc.
8. Q: Could your winches drag inclined?
A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.

---
