US$3,000.00-10,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Sand Dust Test Chamber
Fluctuation Temperature
0.5c
Fluctuation Humidity
2.0% R.H
Temperature Rise Speed
1.0ºC~3.0ºC/Min
Fluctuation/Evenness
±0.5ºC/±2ºC
Temperature Down Speed
0.7ºC~1.0ºC/Min
Temp. Range
-70c~150c, -40c~150c, -20c~150c, 0c~150c
Product Name
Temperature and Humidity Climate Testing Chambe
Transport Package
Safety Wooden Box
Production Capacity
100PCS Per Month
Product Description

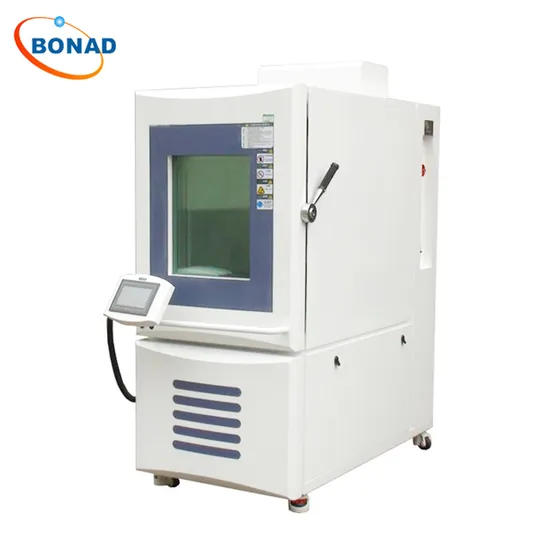

Programable Temperature and Humidity climate Testing Chamber
Model: BND-HWS
Application:
This machine is to test heat endurance, cold endurance, dry endurance, wet endurance of various
Materials.It applies for quality control of electronic goods, electric appliance, measurement device, food,
Automobile, metal, chemical, plywood, aviation, medical and etc.
Specification:
| model | BND-HWS-80 | BND-HWS-120 | BND-HWS-150 | BND-HWS-225 | BND-HWS-306 | BND-HWS-408 | BND-HWS-800 | BND-HWS-1000 |
| Inner size(h*w*d) | 50*40*40cm | 60*50*40 | 60*50*50 | 75*50*60 | 85*60*60 | 85*60*80 | 100*100*80 | 100*100*100 |
| Outer size(h*w*d | 140*60*92 | 150*70*92 | 150*70*102 | 165*70*112 | 175*80*102 | 175*80*132 | 190*120*132 | 190*120*152 |
| Temp range | -70C~150C , -40C~150C , -20C~150C , 0C~150C , room tempt~150C (customize) |
| Temp and humid stability | ±0.5ºC, ±2% |
| Temp humid average | ±1ºC , ±2% |
| Temp humid deviation | ≤±2ºC ±3%rRH |
| Heating time | About 3~4ºC/min |
| Cooling time | About 0.7ºC~1.5ºC/min (customize , linear or nonlinear ) |
| Materials | Outside box :Advanced steel plate paint or sus 304 ,inner box:sus 304 8k glass stainless steel |
| Cooling system | system | France TaiKang |
| Refrigerant | Environmental protection refrigerant |
| cooling | Water-cooled or air-cooled |
| Heating system | Stainless steel fin heat pipe heating air way |
| weight | 260 | 280 | 300 | 330 | 400 | 450 | 550 | 650 |
| Power | AC220V or AC380V 50HZ |
