1500kw Mtu Powered Containerized Gas Generator with SCR

Product Description

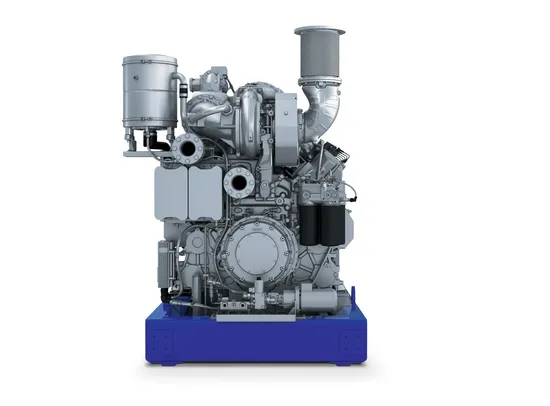

mtu SERIES 4000
NATURAL GAS GENSETS
The natural gas genset offers the highest power density and the
highest kilowatt-per-square-foot ratio in its class. Its smaller footprint
enables a 30% improvement in power density compared to its
predecessor. In multi-generator sites, fewer gensets are needed
to achieve a given power output. The new natural gas genset also has
lower installation costs. The natural gas power genset is based on the
successful 4000 series, delivers from 776-2,535 kW, and has been
optimized for hot and humid environments.
As a mtu authorized system integrator, we offer a wide variety of solutions. As well as our gas engine systems for use in buildings, we also provide containerized turnkey units. Compact, complete, flexible and autonomous, they are ideally suitable for mobile power generation or for applications that do not offer enough space to accommodate a complete gas engine system. When producing power from natural gas, installing the generator set in a container can be a useful alternative to the more common option of permanently installing a static system in a generator room. Our standardized container generator set is designed to meet the requirements of a variety of applications.

model	Power output (KW)	Frequency (HZ)	Voltage (V)	Engine model	Gas inlet pressure (KPA)	Engine power (KW)	Engine displacement (L)
MPNGT-776	776	50	400V/10.5VKV	Mtu8v4000FNER	10-25	800	38
MPNGT-1012	1012	50	400V/10.5VKV	Mtu8v4000FNER	10-25	1040	38
MPNGT-1523	1523	50	400V/10.5VKV	Mtu12v4000FNER	10-25	1560	57
MPNGT-2028	2028	50	400V/10.5VKV	Mtu16v4000FNER	10-25	2080	76
MPNGT-2530	2530	50	400V/10.5VKV	Mtu20v4000FNER	10-25	2600	86

Benefits
Designed for maximum performance
The natural gas genset has an effective engine power of 130 kWm/
cylinder - the highest power density in its class thanks to its compact
design and small footprint. It offers superb performance at high
temperatures and high humidity for use anywhere in the world and
delivers 30% more power than its predecessor.
High efficiency
The natural gas genset achieves efficiencies of up to 44.4%,
delivering a significant improvement in fuel/energy utilization at
high temperatures.
Reduced lifecycle costs
All natural gas genset components are fine-tuned to ensure long
service lives and deliver maximum uptime. Long service intervals and
easy-to-maintain components mean low maintenance costs. Fast
availability of spare parts and low engine oil consumption also help
keep lifecycle costs lower overall, with cylinder head lifetimes
potentially equivalent to TBO.
Cleaner and more flexible
A significant reduction in nitrous oxide emissions makes the natural
gas genset a perfect fit for independent power producers (IPP) and
combined heat and power (CHP) applications. With part-load
performance down to 30% and a fast start option, its operational
flexibility is also ideal for demand response applications. Low
emissions - 250 mg/Nm³, 500mg/Nm³, (@5% O2)NOx - are achieved
without external aftertreatment, even meeting the new expected
German unburned THC emissions legislat

Configuration

8V

12V

16V

20V

Bore/stroke	mm	170/210	170/210	170/210	170/210
Rated speed	rpm	1,500	1,500	1,500	1,500
Mean piston speed	m/s	10.5	10.5	10.5	10.5
Length	mm	4,200	5,000	5,500	6,600
Width	mm	2,000	2,000	2,000	2,000
Height	mm	2,300	2,300	2,300	2,400
Dry weight	kg	11,000	14,000	17,000	21,000

CONTAINERIZED SOLUTIONS
We offer two types of containers: Power containers generate electrical power only and are ideal for remote locations or areas with unreliable power supplies. They are often deployed in power stations. Combined heat and power units (CHP) generate electricity and thermal energy, for example for operators whose processes require both heat and power.
MODULE CONTROL
We supply you with the complete system engineering package for your installation. One of the most important aspects is the control system technology. If the generator set is the heart of the system, then the module controller (MMC) is its brain. Our industrial- computer-controlled and reliable electronics monitor the engine and the overall system to ensure optimum operation.

---
