1530 1.5kw 2kw 3kw 6kw Fiber Laser Cutting Machine CNC Fiber Plate and Pipe Carbon Steel Tube and Sheet Metal Cutting Machine

Product Description

Product Description





1530 1.5kw 2kw 3kw 6kw fiber laser cutting machine cnc fiber plate and pipe carbon steel tube and sheet metal cutting machine

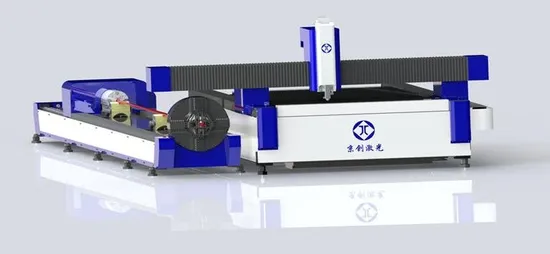

ONE MACHINE WITH TWO FUNCTIONS
Save purchasing costs
One machine with multi-function
Save working space
Double Pneumatic Chucks
Double pneumatic chucks, one key clamping, and automatic centering are adopted to reduce the waiting time for loading and unloading, with high accuracy and speed, and ensure cutting accuracy.
Dual support frame for 6m tube
Our Advantages
(1). High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.
(2). Gantry double-drive structure,with imported Germany rack & gear transmission system, which improves the production efficiency.
(3). High-performance cast aluminium guide rail, after infinite aalysis ,which accelerates the cicular arc cutting speed.
(4). High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
(5). The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
(6). The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.
(7). It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
(8). Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys
Product Parameters

Model	JC-PT3015	JC-PT4015	JC-PT4020	JC-PT6020	JC-PT6025
Cutting range	1500*3000mm	1500*4500mm	2000*4000mm	2000*4000mm	2500*6000mm
Laser power	1000w-3000w	1000w-3000w	1000w-3000w	1000w-3000w	1000w-3000w
Linkang speed	120m/min	120m/min	120m/min	120m/min	120m/min
Acceleration	1.5G	1.5G	1.5G	1.5G	1.5G
Positional accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Re-Positional accueacy	±0.02mm	±0.02mm	±0.02mm	±0.02mm	±0.02mm

Main parts

Machine Body--Heavy Welding Machine Body The bed adopts a plate-welded integral welding structure, which is rough-processed after annealing to eliminate internal stress and is finished after secondary vibration aging treatment, which can well solve the stress caused by welding and processing, thereby greatly improving The stability of the machine tool.
Aviation Aluminium Cross-Beam Aerospace-grade aluminum light quality, high speed, good dynamic response, and fast acceleration.Beam as a whole by the finite element analysis optimization of high rigidity, lightweight design, and durability.
Auto-focus laser head
Superior optical configuration and efficient and smooth airflow design significantly improve cutting quality and efficiency.
We can provide all high-quality laser heads on the market. It's been tested by us for a long time.Precitec/Raytools and some other famous brands are all of our long-term partners.
Support Rack Table
Strong and easy to replace, suitable for sheet metal processing.
Guard Rail
High speed, miniature, ultra-long, low noise, high precision, smooth movement, good synchronization, long durability, etc.
Cutting Sample

Company Profile
JINGCHUANG (Tianjin) Laser Technology Co., Ltd. (JATTRA GROUP) started in 2015, the founder comes from the Swiss Bystronic
Group, the company technical team are from more than 10 years of experience in the laser industry. The company uses the most advanced modern industrial technology means engaged in fiber laser cutting machine, fiber laser pipe cutting machine , fiber laser welding machine , CNC bending machine, sheet metal complete sets of related industrial equipment and sales. Products are widely used in precision machinery, auto parts , kitchen hardware, electronic appliances, smart home and many other industries.


Packaging & Shipping

CNC metal fiber laser cutting machine
1.Timely delivery. Each machine is arranged with precise assembly steps without any delay.
2.After-sales services and Guarantee. We offer 2 years warranty, during the period, any problem happen, we are responsible to solve. And if any part of the machine was broken, which happens rarely
3.Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
Exhibition
After Sales Service
Free training course at our plant. Specialized after-sales service group 24 hours online each day, to provide free technical support by e mail, whatsapp, wechat and so on. Machine has been tested and adjusted before delivery, you can use the machine directly after receiving it. Providing technical services door to the door: we have professional engineers to offer machine installation commissioning and maintenance if customers pay ticket and related charges(accommodation problem) .(5 days training are free and overtime is 100 USD/Day) About installation, because we ship the machine by a full container we won't disassemble too much p arts, the main parts that need to connect is laser source, water chiller and controller. We have detailed manual and videos, if you don't understand, our after-sales service man can guide you hand by hand, video call is available. FAQ
Q: How to install and run the machine? A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong? A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: Are you factory or trading company? A: We are an OEM factory with many experience.
Q: What's your MOQ? A: We don't have MOQ. No matter 1set order or 100sets order, we will give you support with our heart and soul.

---
