Factory Supply Dyz-12 (T) 20mm Vertical Precision Hydraulic Drilling Machine

US$2,200.00
1-4 Pieces
US$2,150.00
5-9 Pieces
US$2,100.00
10+ Pieces

Basic Info.

Model NO.
DYZ-12(T)
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Oil Pump
Number of Shaft
1
Hole Diameter
20mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Spindle Travel
135mm
Taper
Mt2
Spindle Speed
500-1800r/Min
Column Diameter
65mm
Motor
0.75kw
Main Spindle to Working Table
600mm
Working Table
370*400mm
Transport Package
Wooden Box
Specification
320kg/650*300*820mm
Trademark
CDK
Origin
China
Production Capacity
500/Month

Packaging & Delivery

Package Size
65.00cm * 30.00cm * 82.00cm
Package Gross Weight
320.000kg

Product Description

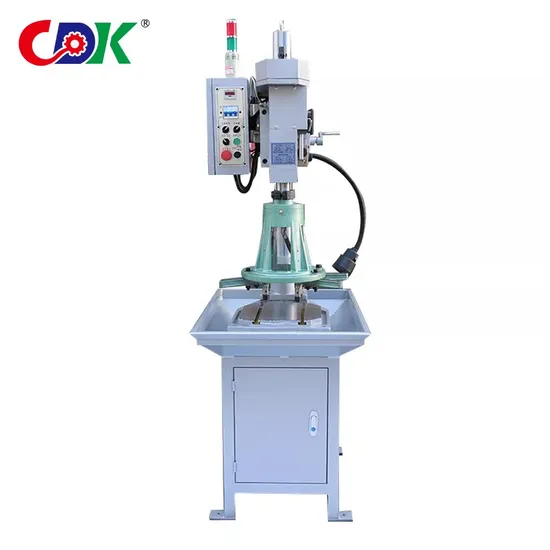

Factory Supply DYZ-12(T) 20mm Vertical Precision Hydraulic Drilling Machine
1. Automatic remove chip special function purchase
2. It adopts oil pressure section feeding and drilling, especially suitable for deep hole, stainless steel and other processing conditions
3. Machine feed and retreat with hydraulic power, perfect processing stability
4. Cooperate with medium and large multi-spindle head to process according to various conditions to avoid the disadvantage of unstable air pressure and make the product quality more stable
