Automatic Advanced Industrial Wood Sawdust Chicken Duck Bird Animal Feed Soybean Meal Pellet Cooler with Vibration Screen and Fan

Product Description

SKLN Series Pellet Cooler - Elite Pellet Cooling Machine
Product Description
Introduction:
Following the pelletizing process, wood pellets can reach temperatures between 60-80 degrees and retain a moisture content of approximately 15%. To enhance the quality and storability of these pellets, it is crucial to use a Cooler to reduce the moisture content by about 3-4%.
This sophisticated wood pellet cooler features a closed air feeder, bulk handling device, cooling box, and an efficient discharge mechanism.
Crafted from robust materials, the closed air feeder and top cover of the cooler are available in stainless steel, offering exceptional corrosion resistance and an extended lifespan.
Advantages:
1). Versatile cooling capability suitable for all granular material sizes
2). Utilizes the counter-flow cooling principle for thorough and uniform cooling
3). Innovative gliding valve design for enhanced performance
4). Ensures post-cooling pellet temperatures are no higher than +3-5°C above ambient
5). Guarantees stable operation and smooth discharge processes
Main Data:

Model SKLN		1.1×1.1	1.4×1.4	1.6×1.6	1.9×1.9
Capacity (t/h)		2.5	5.0	7.5	10
Vibrational Frequency (times/min)		42	42	34	34
Amplitude (mm)		30	30	30	30
Cooling Time (min)		≤10	≤10	≤10	≤10
After Cooling Material Temperature (°C)		Indoor temperature +3~5	Indoor temperature +3~5	Indoor temperature +3~5	Indoor temperature +3~5
Power (kw)		0.75	0.75	0.75	1.1
Aspirating Capacity (m³/h)		4500	9000	13500	18000
Wind Pressure (mmH2O)		200	200	200	200
Dimension (mm)	Length	1925	2245	2560	2795
	Width	1340	1660	1846	2146
	Height	2220	3070	3290	3600
Weight (kg)		1250	1380	1650

For more images and detailed specifications of the pellet cooling machine:

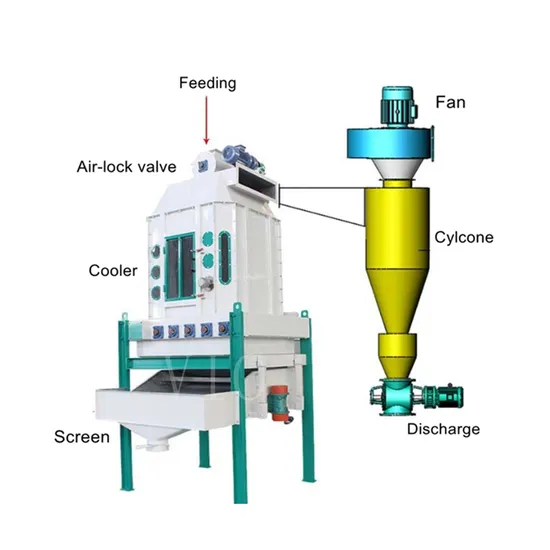

Counterflow Coolers featured in Two Distinct Models
Pellet cooling machine equipped with a multifunctional discharging hopper
Pellet cooling machine integrated with a high-efficiency vibrating screen
Designed with a stainless steel top cover, incorporating a stainless steel air-lock valve and four strategically placed observation windows
Includes a flexible level gauge mounting hole and a convenient maintenance window
Engineered with a lower support frame featuring a turnover plate device
Equipped with powerful axial fans and an effective silencer
Durable lower hopper
Incorporates a vibration screening machine to efficiently remove dust, impurities, and fine particles
Packaging: Securely packed in wooden boxes and available in 20 or 40-foot containers
