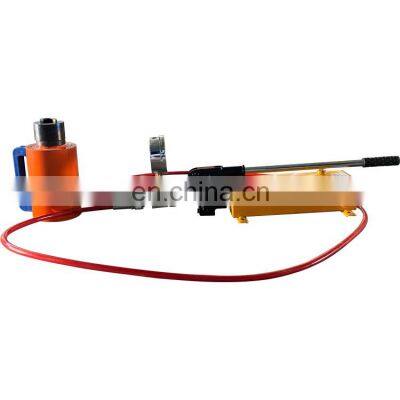

Concrete Rebar Pull Out TestProduct DescriptionThis product is used to test the firmness of the combination between the anchor and the foundation. It is widely used in railways, highway tunnels, water conservancy projects, coal mine shafts and national defense projects. It is a simple and scientific testing instrument.Anchor rod tension score is divided into two parts: horizontal manual pump pressure and hollow jack, and is composed of high-pressure rubber tube and quick joint connection. When the hand pressure pump is loaded with pressure, the jack can be raised quickly, when the measured anchor When the required value is reached, the jack can be automatically reset when the oil return valve of the hand pump is opened.This product is an improved type, small size, light weight, easy to carry, and more importantly, it does not need to be equipped with other auxiliary processes, because it is equipped with a clamp that can directly lock the anchor rod, which is firm, convenient and easy to disassemble. advantage.ParametersHollow JackRated tensionKN150B (15T)200B (20T)300B (30T)Hollow JackPiston strokemm405050Hollow inner diametermm303234Hose length3 metersApplicationContact USCangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.Our Customers and patent certificatePacking & DeliveryWhy Choose us ?get our in-time reply via email or telephone or instant messenger;get best product with excellent quality and competitive price;One year guarantee for whole machine 24 hours technical support by email or calling teach you to install and operate,always enjoy our considerable & full-side after-sales service; feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost; easily make the payment via West Union, Paypal, T/T for small value order;
>>
