Flexlock Stripwound Roughbore Interlocked Metal Hose Machine for Engine Exhuast System^

Product Description

Flexlock Stripwound Roughbore Interlocked Metal Hose Machine for Engine Exhaust System^
MACHINE RUNNING VIDEO
https://youtu.be/JS0EZ6a-86A
https://youtu.be/t8VmZpXcO0A

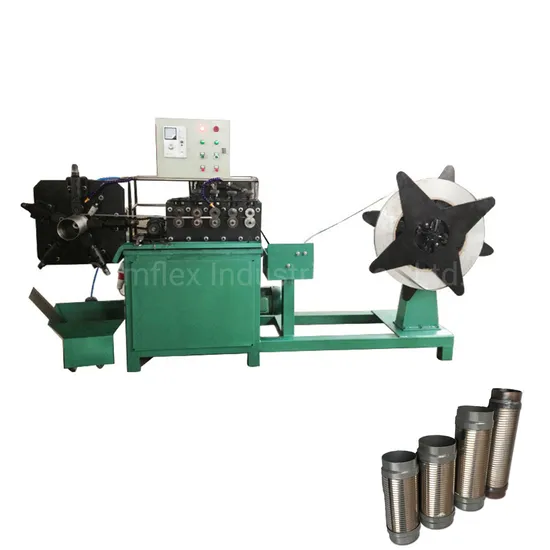

The Interlock flexible hose machine is used to produce flexible hose from metal strip by spiral lock forming, the metal strip can be stainless steel, galvanized steel and aluminum, etc. And the finished flexible hose will be widely used for electric cable protection casing, shower hose, etc.
Feature
l Interlock seam for more rigidity and less flexiblity.
l The flexibility is adjustable by change lock seaming
l Automatic lubrication and cooling system
l Adjustable lock forming roller for different thickness

Technical data for interlock hose making machine
Size range	ID6-ID26mm	ID30-50mm	ID38-150mm	ID75-300mm	ID200-400mm	ID38-65mm
Production speed	50-180m/hr	50-180m/hr	100-120m/8hr	150-400m/8hr	100-120m/8hr	150-400/8hr
Strip size	7-9*0.18-0.23mm	7-9*0.18-0.23mm	16,20mm*0.25-0.5mm	20*0.45mm	28*0.5-0.8mm	15*0.25mm
Production type	round	round	Round/polygonal	Round	round	polygonal

Interlock Flexible Hose Making Machine Available shape	Round/Polygon
Size range	ID150-600
Forming spped	100-200m/8hrs
Strip thickness	0.25-0.8mm
Strip width	16, 20, 28, 32mm
Power	11KW
Outer dimension	3500*1200*1600mm

Main Features:

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
6) It has excellent performance of waterproof, insulation and tensile property.
7) The counter-lock structure provide a powerful tensile resistance, hard to break and deform

Products
Machine Package
Customer training
we supply best aftersale service about machine training.
Good Comments from India client

Company information
Comflex Industrial Co.,Ltd
We are professional manufacturer of all types of metal flexible metal hose making machinery, such as corrugated metal hose, square lock and interlock hose/ conduit machine with more than 25 years of experience.
The sizes are as follows:
Square lock hose and machinery:ID6-ID103
Interlock hose and machinery:ID3-ID350mm on different machine
Annular and corrugated metal hose: ID8 till ID600 on different machine
For more information, welcome to visit our website: flexchina.en.made-in-china.com
RFQ:
Q: What material hose do you have?
A: stainless less steel (garde201, 3045, 316L, 321), galvanized steel, aluminum.
Q: Can you customize for us?
A: yes we accept customize, including hose size, diameter, and thickness.
Q: why should I chose you?
A: we produce both hose and hose making machine with many years' experience and professional technology.
Q: what is your hose features?
A: High flexibility.

We need to know the following information before we send quotation for the steel hose that you need:
1.Hose size range
2:Material of hose
Such as: Stainless steel (304,316L)/Galvanized steel
3:Product type
Round/Polygonal interlock hose

Welcome to inquiry us!

---
