US$35.00-65.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
TSK-Dual Frequency RFID Module-HS10
Interface
USB, Serial Port, RS232/RS485/Wg26/34
Application
Hospital, Library, Company, Bank, Store
Name
125kHz & 13.56MHz RFID Module
Frequency
125kHz, 13.56MHz
Support Chips
Em4200/Tk4100/T5577/Em4305, NFC, UL etc
Protocol
ISO14443A/B, ISO15693 & ISO18092
Software
Supply Sdk&Demo for Free
Antenna
External, Variety of Optional Specifications
Connection
Metal Pin Connection
Supporting Card
Em4200/Tk4100
Transport Package
DHL/Fed-Ex/UPS
Specification
39 *19 * 9mm
Production Capacity
1000piece/Week
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
0.300kg
Product Description
125Khz & 13.56Mhz Dual Frequency RFID Module with Keyboard Emulation
Free Sample Test before you place an order to us !
Instruction:

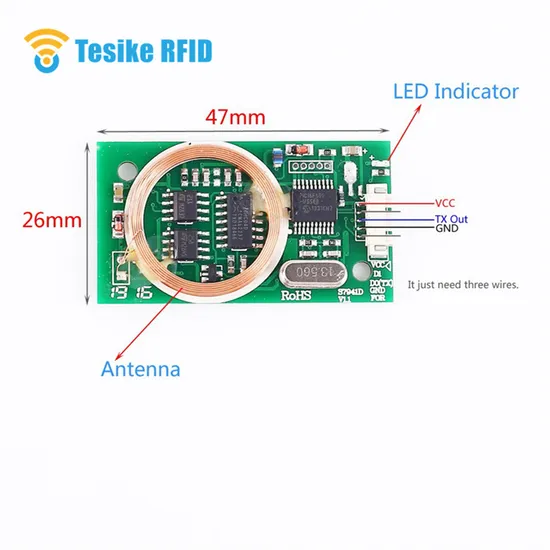

TSK217 series module is a contactless smart card reading module developed that support 125Khz and 13.56Mhz card. It adopts highly
integrated special card reading chip, advanced watchdog and voltage monitoring circuit project design and features a high degree of
integration, strong anti-interference ability, small size and more stable performance.
Parameter:
Model No.
| TSK217
| TSK227 |
Frequency
| 13.56MHz&125Khz
|
Supporting Card
| EM4100/EM4200/TK4100
Mifare®S50/S70/Ultralight,
Mifare®Pro, Mifare®desfire
| EM4100/EM4200/TK4100
Mifare®S50/S70/Ultralight,
Mifare®Pro, Mifare®desfire ect
H-ID® iClass, Felica, ICODE SLI
|
Interface
| TTL, wg26/34, USB
|
Power Supply
| 3.3~5V
|
Current
| < 70mA
|
Read Distance
| 0-5cm(Depending on label size and antenna technology)
|
Operating Temperature
| -10ºC-50ºC
|
Storage Temperature
| -20ºC~80ºC
|
Antenna
| Built-in
|
Dimension
| 45*25mm |
Packing information:
Packing (TTL)
|
Quantity
| Dimension(cm)
| Weight(kg)
|
100pcs
| 22*17*7cm
| 0.6kg
|
1000pcs
| 55*40*33cm
| 6kg
|
Model Description:
Module NO.
| Interface
|
TSK217-T
| TTL
|
TSK217-W
| Wiegand26/34
|
TSK217-H
| USB-H-ID
|
Application:
Table PC
Lift control
POS terminal
Access control
Attendance application
Recreational Machine
Barrier gate/rapid-open gate
Advertising tablet PC
Medical Electronic Equipment
Identification card scanner
Smart game equipment
Hand-held intelligent terminal
POS consumption endpoint
>>
