5t and 10t Can Be Customized Milk Chiller Machine Milk Cooling Tank

Product Description

Large capacity 5T and 10T customized milk cooling tank Milk Cooler Chiller
Name: Milk Cooling Tank/ Milk Cooler Chiller
1. Cooling fresh cow milk to exent the storage time
2. Temperature controlled automaticaly
3. Cooling fresh milk to 0~4 degree in short time
4. USD world famous compressor brand such as copeland.
Milk Cooler Chiller can be devided into vertical Milk Cooler Chiller and horizontal Milk Cooler Chiller according to the tank capacity. For small capacity, such as 500L, 800L and 1000Liter capacity milk cooling tanks, we usually make it into vertical Milk Cooler Chillers. For the cooling capacity more than 1500L, we usually make it into horizontal Milk Cooler Chillers.
Picture of vertical Milk Cooler Chiller:

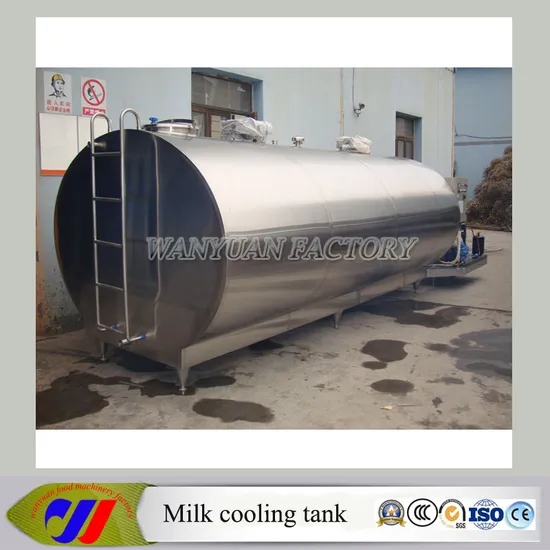

Picture of horizontal Milk Cooler Chiller:
Usage of Milk Cooler Chiller
Vertical Milk Cooler Chiller and Horizontal Milk Cooler Chiller can be used to storing and Cooling fresh raw milk on farms, as well as fluid in small milk depot, dairy plant, food, feed, as well as Pharmaceutical plants.
Milk Cooler Chiller structure
The Milk Cooler Chiller is mainly composed of the body, agitator, cooling unit and electric Control cabinet. The Milk Cooler Chiller body is made of stainless steel, with precision Polish, good looking, easy to clean and corrosion resistance.
Outside the inner layer of the Milk Cooler Chiller is a kind of jacket as the picture below. This kind of dimple jacket will send the coolant to all part of the Milk Cooler Chiller is shortest time.
Out side this dimple jacket, there is a layer of heat preservation. This insulation layer will help to keep the milk in a low level.
Here below is the Milk Cooler Chiller specification

Milk cooling tanks specification
Model	Capacity(L)	Cooling capacity(W)	Stirring speed ( R/MIN)	Match power(KW)	dimension(L*M*H)
MCT-0.5	500	3500	36(24)R/MIN	1.5	2200*1350*1150
MCT-1	1000	6900	36(24)R/MIN	3	2750*1150*1500
MCT-1.5	1500	10000	36(24) R/MIN	4	3000*1350*1550
MCT-2	2000	13000	36(24)R/MIN	5	3200*1500*1600
MCT-3	3000	17800	36(24)R/MIN	6.5	3500*1650*1700
MCT-5	5000	34000	36(24)R/MIN	13	4000*1950*2000
MCT-6	6000	34000	36(24)R/MIN	13	4200*2200*2100
MCT-8	8000	42000	36(24)R/MIN	18	4800*2400*2400
MCT-10	10000	65000	36(24)R/MIN	24	5000*2600*2500

---
