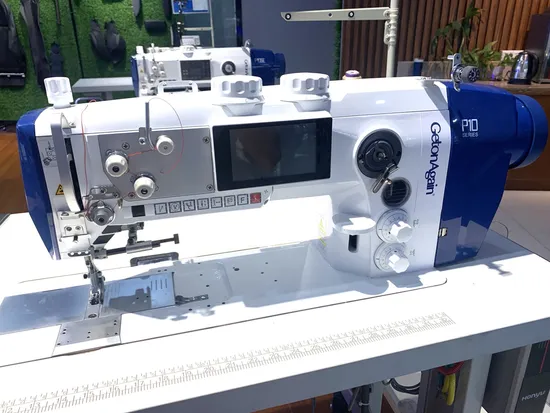

P10-190632 Sewing machine supplier flat bed single needle car seats heavy duty sewing machine

Product Description

Walking foot leather industrial sewing machine, flat bed sewing machine
P10-190632 Direct drive, single needle binding compound feed sewing machine

Model No.	P10-190632
Feeding system	Alternating presser foot, feed dog and needle feeding
Max sewing speed	3400 s.p.m
Shuttle diameter	Ф32mm
Applied needle	DP×17 #18-#23
Needle quantity	1
Thread size	Maximum thread 12 strands nylon
Max stitch length	9mm
Max alternating presser foot	9mm
Max presser foot lifting height	20mm
Auto trimming	√
Auto back tacking	√
Presser foot lifting height by air	√
Auto oil system	√
HP function	√
Halving positioning device	-
Operation space	351×125mm
Multi-grade adjustable LED light	√
Electronic handwheel	√
LED touchscreen	5.1 inch
Function short-cut buttons	2
Function related can be set	√
Double stitch length switch quickly	√
Pneumatic compensation thread clamp	√

Product Description
1.Single needle platform heavy duty sewing machine,
2.Equipped with XXL hook (Ф32mm),standard automatic thread trimming device,The remaining tail length after thread cutting is approximately 15mm.
3.Typical application areas:Suitable for stitching and decorative topstitch sewing of heavy duty materials and leather products.
Product Advantages
LCD touchscreen
LCD touchscreen provide comfortable human-machinery screen and can be upgraded to 10 inch to enjoy internet function
IOT function 1.The sewing machine with IOT can support the data uploaded and the operation instructions downloaded. Connected with the systems such as MES, APS and WMS, it can provide the basic production equipment to build intelligent factories for our clients. 2.It can alarm techinican, administrative staff and QC staff in real time, and it is an important tool for rapid response in production process.
Two group of customized short-cut buttons
Keeping press the short-cut button can start to set two of the functions as the short-cut buttons.
XXL large hook
P10 series is equipped with XXL large hook as standard.The diameter of bobbin is 32mm.Compared with the first generation of HONYU, the capacity of wire is increased by 47%, the frequency of bobbin changing is effectively reduced.
Needle gauge
P10 double needle series adopts metric needle gauge group,6mm, 8mm, 10mm and 12mm various specifications are available.
Larger operation space
351*125mm, the larger operation space facilitated the handling of large-area workpiece.
Multi-function button group
Electronic handwheel, back tacking, cancel back tacking, transform instantaneously internal and external presser foot alternating amount, stitch compensation, compensation thread clamp, double stitch length switch quickly, pneumatic halving device and safe threading mode are satisfied with various usage scene.
Safe threading mode
Adjust the needle to the height which is most suitable for threading, and lock all functions of the machine to avoid personnel injury caused by misoperation during threading.
Double stitch length switch quickly
The upper knob sets the long stitch length, the lower knob sets the short stitch length, which can be switched quickly by the function button.
Electronic handwheel
The operator can easily turn the upper shaft(moving the needle rod up and down) by using the electronic handwheel instead of manually rotating the handwheel.
Multi-grade adjustable LED light
According to the demand, the operators can adjust the luminance by touching the screen.
Typical Field of Application
It's applied in normal sewing for car seat interiors and soft furniture like sofa.
