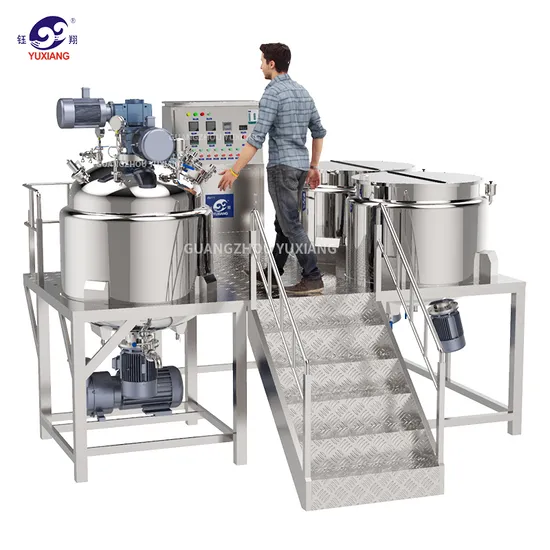

Lotion Cream Mixing Equipment Vacuum Homogenizing Emulsifier Mixer

Product Description

Lotion Cream Mixing Equipment Vacuum Homogenizing Emulsifier Mixer1, It's used for produce the cream, lotion, paste, ointment, paste, conditioner, etc. Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect; 2, Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall; 3, Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully; 4,Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation. 5, Customer can choose frequency conversion timing homogenizer and highest rotate speed is 3600 r/min. Vacuum Emulsifying Mixer Features SIEMENS frequency converter for speed adjustment, which can meet production of different technology requirement. The vacuum defoaming can make the materials meet the requirement of being aseptic.The vacuum material sucking adopted can avoid dust,especially for the powder products. Mechanical sealing, good sealing effect and long working life. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards. Material contact parts all use SUS316L stainless steel. The heating method mainly include electric or steam heating for customer's choice. Advanced PLC touch screen control is optional. The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge. Technical Parameter

Model	Main pot	Water pot	Oil pot	Main pot power		Hydraulic System	Vacuum pump power (KW)
	Volume(L)			Wall scraping	Homogenizer KW
RHJ-10L	10L	8	5	0.18	1.1	0.75	0.55
RHJ-20L	20L	14	10	0.75	1.5	0.75	0.75
RHJ-50L	50L	35	25	1.1	2.2	1.5	1.5
RHJ-100L	100L	70	50	1.5	3	1.5	1.5
RHJ-200L	200L	140	100	2.2	4	1.5	2.2
RHJ-300L	300L	210	150	3	5.5	1.5	2.2
RHJ-500L	500L	350	250	4	7.5	1.5	2.2
RHJ-1000L	1000L	700	500	5.5	11	2.2	3

What is production vacuum homogenizing mixer?
Chemical vacuum emulsifying homogenizer mixer/Chemical machine for the manufacturing of viscous emulsion, dispersion and suspension in the cosmetic, pharmaceutical, food and chemical industries. It's the most advanced homogenizing equipment design from Europe and is especially suitable for making big batches of cream and emulsions with large quantity of powders.
Advantage
It's used for produce the cream, lotion, paste, ointment, paste, conditioner, etc. Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully;
Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
Customer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min What is production vacuum homogenizing machine made of?
Chemical vacuum emulsifying homogenizer mixer/Chemical machine is usually made of main homogenizing mixer, oil phase mixer, water phase mixer, vacuum system, hydraulic lifting system, materials circulation system, heating and cooling system, temperature control system and electrical control panel etc.
The main homogenizing mixer is composed of a vertical type inline high shear mixer mounted from the bottom of the manufacturing vessel, wall scraper and two fixed propellers with holes. The bottom homogenizer consists of one three-layer toothed rotor and one two-layer toothed stator. An external circulation pipe comes along the tangent of rotor and connects to the top edge of the tank body.
The oil and water phase mixers have exactly the same construction. There's a high speed disperser mounted from the top of the cover which helps dissolve the ingredients. Some customers will omit the oil and water phase mixers and keep the main homogenizing equipment only.
Product Details
How does production vacuum homogenizing mixer work?
During the mixing operation, the outer anchor agitator rotates clockwise slowly. With the attached blades, the materials are scraped off the mixing tank wall and move upwards so they won't always stick to the wall and burn.
At the same time the two fixed impellers keep still and give the materials a counterforce and drive the cream downward into the high speed homogenizing and emulsifying zone. The cream goes through the holes on the paddles and increases mixing effect.
Because of the two opposite forces by fixed impellers and wall scraper, the cream rolls over the vessel from top to bottom and back to top repeatedly. When the cream is completely mixed, the heat from the jacket is quickly transferred to every part through the inside wall.
The heart of vacuum homogenizing equipment is rotor stator homogenizer (or called emulsifier) which consists of one three-layer toothed rotor and one two-layer toothed stator. The design is different from the homogenizer in RS series production vacuum emulsification mixer and is much better.
The rotor is directly connected with homogenizing motor by flanges. The ABB or Siemens motor rotates at the speed of 3000rpm and drives the rotor to rotate at high speed producing strong suction force.
The materials go into the rotor from top opening of the homogenizer and are cut, sheared, emulsified and homogenized through the shear gap between the rotor and stator. Then they're accelerated to jet out through the pipeline along the tangent of the rotor. The cream runs inside the external circulation pipe and goes back to mixing tank for the slow mixing or another emulsification and homogenization.
The above two types of slow and high forces repeat and repeat. And the cream circulates through the pipeline and is completely mixed, dispersed, emulsified and homogenized.
Water ring type vacuum pump (-0.09Mpa) is powerful to pull out the bubbles generated during mixing, dispersing and homogenizing. It also helps transfer the ingredients from the oil and water phase mixers to the main homogenizing machine. The small quantity perfumes are also sucked by vacuum to avoid dust.
Oil hydraulic pump is used to lift the cover of main homogenizing mixer. Safety devices are equipped to guarantee that the mixing part won't start when the cover is lifted.
Key features of production vacuum homogenizing machine
Complete process of mixing, dispersing, emulsifying, homogenizing, vacuum, heating and cooling in one unit Working capacity from 5L to 10000L Suitable for cream and emulsion of 10,000~100,000cps viscosity Perfect particle size of 2 micrometers and evenly distributed External emulsifying and homogenizing by vertical type inline homogenizer with pipes Shorter batch time compared with RS series vacuum emulsifying mixer Cooling system for mechanic seal inside the homogenizer for longer homogenizing time The homogenizer also works as a transfer pump for discharging finished product Contra mixing system of fixed impellers with holes and wall scraper Outer anchor agitator has pipe design for enhanced mixing and good appearance Variable speed for homogenizer and agitator Oil hydraulic lifting system for easy cleaning and maintenance Double jackets for heating and cooling Different jacket designs available for steam and electric heating Double temperature probes and controllers for electrical heating in main vacuum homogenizing machine Vacuum system to take out the air bubbles during mixing and to transfer the ingredients Compressed air to help discharge finished cream Multiple safety protection devices for vacuum, hydraulic pump and workers All contact parts are made of SS316L and mirror polished Spray ball is equipped to connect to customer's CIP system The specifications of the vacuum homogenizing equipment comply with cGMP regulations Push buttons control panel for easy operation Power supply of 380V, 50Hz, 3 Phase Applications of production vacuum homogenizing mixer
Cosmetics & Toiletries: cream, lotion, wax, mascara, gel, toothpaste Pharmaceuticals: ointment, dental composite, syrup, injection Food: mayonnaise, dressing, jam, butter, margarine, wasabi Chemicals: polyester, synthetic fiber, shoe cream Options of lab vacuum homogenizer mixer for making toothpaste
Fixed cover with bolts or welding to save budget Different slow mixing part designs available Frame type slow agitator for oil pre-mixer Extra openings on the vertical type inline homogenizer for adding hot and cold ingredients and powders Delta or Siemens PLC for automation of mixing, dispersing, emulsifying, homogenizing, vacuum, transferring, heating and cooling etc Mettler-Toledo load cells Flow meter automation for feeding liquid oil and water Pressure vessel design for different steam pressure SIP is available upon request Different power supply acceptable Factory Pictures
Certificates
Customer Pictures
Packing
Services 1. 24 hours hotline service for cream mixer, cream mixing tank, cream mixing machine.
2.The machine is guaranteed for one year and lifetime maintenance
3.Provide complete independent design, manufacturing, installation and other integrated services
4.provide online services, such as WhatsApp, WeChat or video teaching
5.Professional R& D team, independent r & d production
FAQ
1 .Q Do you accept a special order?
A: Yes ,we do ; We can manufacture all kinds of chemical equipments according to your technical drawings;
2.Q: Can you give us a quotation right now?
A: Please give us the detail of the technical so we will design and quotate for you as soon as possible;
3.Q: Do you have one in stock?
A:Sorry. We don't. All products are manufactured according to customer's requirement;
4.Q: Can you make a design for us?
A:Yes We can What we supply is not only product but also solution and design;
5.Q:Can your engineer come to our place for installation guides?
A:Yes, we can we will provide a video and document for installation;If you still have problems we will send our engineer oversea for installation guide

---
