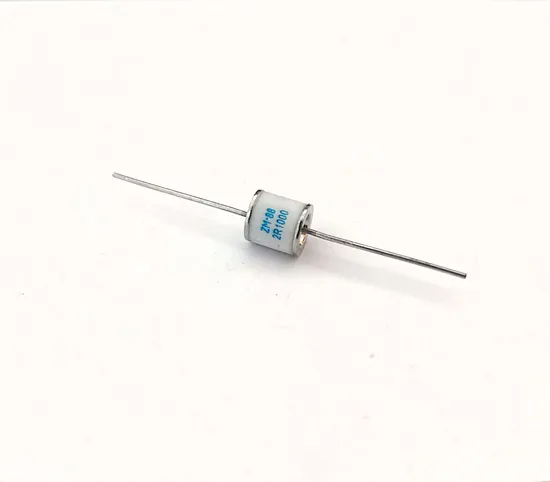

8*8mm 1400V 2-Pole 2-Electrode Gas Discharge Tube for Ignition and Automotive Lighting Switching Spark Gap

Product Description

Detailed Photos
Product Parameters

Switching Spark Gap	ZM88 2R1400L
Nominal DC spark-over voltage	1400	V
Deviation of VS at 50000 ignitions(Note)	160	V
Initial value
First ignition value,after 24 hours in darkness	≤1630	V
Following ignition values	1230-1570	V
Electrical life
After 50000 ignitions, first ignition value after 24 hours in darkness	≤1800	V
Following ignition values	1200-1600	V
Ignition time during life	≤60	ms
Switching operations
at-40ºC	150000	times
at+25ºC,+125ºC	300000	times
Test circuit parameters
Open circuit voltage V0	1600	V
Loading resistance R	110	KΩ
Discharge capacitance C	68	nF
Inductance L	0.5	µH
Discharge peak current	~400	A
General technical data
Insulation resistance at 100V	1010	Ω
Early ignition values between the above breakdown voltage range	≤ 2	%
Operation and storage temperature	-40~+125	ºC
switching frequency	110	Hz
Breakdown time	≤50	ns
Maximum loading current	<50	mA
Weight	~2	g

Certifications
Packaging & Shipping
Company Profile
Our Advantages
Ningbo Zhengmao Electronics Co., Ltd
With convenient transportation and rapid economical development, Ningbo Zhengmao Electronics Co., Ltd. (with a former name Ningbo Shitong Telecommunication Component Factory) is located in the south of Ningbo Zhejiang Province, China. Founded in 2002, our company specializes in researching and manufacturing Switching Spark Gaps, Gas Discharge Tube and others.
Switching Spark Gap (SSG) has a voltage mainly ranging from 110V to 800V with many advantages including complete varieties, good stability and long lifetime (it can be switched for over thousands of times to millions of times). This product is mainly used for ignition on HID ballast or street lamps, ect.
Gas Discharge Tube is anti-aging with high insulation resistance, small capacitance and quick respond. It is widely used for over-voltage protection of telecom and other electronics as well as lightning protection.
We are a member under identification of Quality Management System (ISO9001-2008QMS). Our products all meet the International standard of IEC61643-311, Recommendation Standard of ITU-T K.12 and the national standard GB/T9043-2008/ Communication Equipment Over-voltage Protection with General Technical Conditions on Gas Discharge Tube, etc.. Gas Discharge Tube has got the TüV certification of German and SGS certification, meeting the rules of RoHS.
Based on Quality, we aim at satisfying our customers by continually improving our product quality and service to meet your needs.

---
