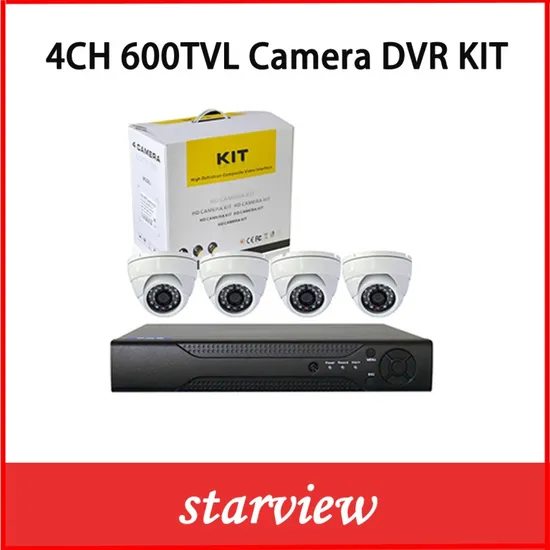

Surveillance 4CH 600tvl Security IR Dome Camera CCTV DVR Kit (SV60-DK04D7C60)

Product Description

DVR:
H.264 main profile compression
8ch full D1 real-time coding recording
Support iPhone, Windows mobile, Blackberry, Symbian, Android.
Support TV, VGA, HDMI output synchronously
Support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP,EMAIL
Support 3322, Dyndns, Oray, Myq-see,etc Domain name service.
Support 1 SATA interface up to maximum 3TB HDD. Support 2 USB2.0.
Support 15 kinds of languages such as English, Finnish, French, German, Greek, Italian, Japanese,
Polish, Portuguese, Russian, Spanish, Thai, S-Chinese,T-Chinese and Turkish
Easy operation GUI.
Camera:
1/3 CMOS DSP Sensor
Resolution 600TVL (700TVL,800TVL,1000TVL Optioanl)
Minimum illumination:0.1Lux/F1.2(0Lux IR ON)
ICR cut,day and night control
24PCS,Ø5 LEDS,IR Distance 20M
3.6/4/6mm Fixed lens
Water-proof IP66
Packing
1.600TVL IR Dome Camera*8
2.8CH Full D1 DVR*1
3.Power DC12V/5A *1
4.20M Power&Video Cable Line*8
5.Mouse*1
6.CD dish*1
7.Quick Installation Guide*1
8.Screws

Model	SV60-DK04D7C60
DVR Specifications
System
Operating system	Embedded LINUX
System Resources	Pentaplex function:live,recording,playback,backup & remote access
User Interface	GUI,on-screen menu tips
Display	1/4
Video
Video Standard	PAL(625 line,50 f/s);NTSC(525 line,60 f/s)
Monitoring quality	PAL ,D1(704×576);NTSC,D1(704×480)
Playback quality	D1/HD1/CIF/QCIF
Total frame rate	D1:PAL 100/120fps
Video Input	4ch
Video Output	1BNC, 1 VGA
Audio
Compression standard	G711A
Audio Input	4ch
Audio Output	1ch
Voice Intercom	Support
Video recording and playback
Recording mode	Manual>Alarm>Video Detection>Continuous
Local playback	4ch
Video Query	Time/Date, Alarm, Motion Detection & exact search ( accurate to second)
Storage and backup
Take up hard disk space	Space Occupation,CIF:5G/day@channel,D1:20G/day@channel
Video Save	Hard disk,USB ,HDD,Network
Backup	USB,HDD,Network
Interface
Alarm Input/Output	No
Network Interface	RJ45 10M/100M
PTZ Interface	NO
USB Interface	1 USB 2.0 port,1 USB MOUSE
HDD Interface	1 SATA port ( Maximum 2T SATA HDD )
Automatic Switcher	NO
12V output	NO
Network
Network Interface	RJ45 10M/100M
Network Protocol	Supports TCP/IP, DHCP,DDNS
Internet Viewing	Internet Explorer 6 or Higher
Mobile Phone Viewing	Symbian, Windows Mobile, iPhone, Blackberry and Android Phone
General
Power supply	12V/2A
Power consumption	<15W(without hard disk)
Operating Temperature	0°C -+55°C
Humidity	10%~90%
Dimensions	34*9.5*27cm
Weight	1.5KG(without hard disk)
Camera Specifications
Video
Image Sensor	1/3 CMOS DSP Sensor
pixels	PAL : 712(H)x582(V) NTSC : 712(H)x492(V)
Sync system	Inter line Synchronization
Horizontal resolution	600TV line
Minimum illumination	0.5LUX/0LUX(LED ON)
S/N Ratio	More than 48dB (AGC off)
Gamma characteristic	0.45
Day&Night	Auto IRCUT Switch
AGC	Auto
White balance	Auto White Balance(AWB)
AGC	Auto
B. L. C	B. L. C Back Light Compensation (Auto)
Electronics shutter	PAL: 1/50~1/100, 000 sec
Video output	1Vp - p75 ohms, Negative
GENERAL
LENS	3.6MM/4MM/6MM
IR LEDS	24PCS,Ø5 LEDS
IR Distance	20M
Power input	DC12V
Operation temperature	- 10 ° C~+60 ° C RH95%Max
Storage temperature	- 30 ° C~+60 ° C RH95%Max

---
