CE Certified Shanghai Cable Manufacturing Flame-Retardant H01n2-E Flexible Cable 100/100V

US$0.42 1,000 Pieces (MOQ)

Basic Info.

Model NO.
H01N2-E
Application
Electrical Facilities
Conductor Material
Copper
Sheath Material
Cross-Linked Elastomeric Special Compound
Material Shape
Round Wire
Range of Application
Flame Retardant
Certification
ISO9001, CE, RoHS
Brand
Aein
Transport Package
Optional
Specification
Multicore
Trademark
AEIN
Origin
Shanghai
HS Code
8544492100

Product Description

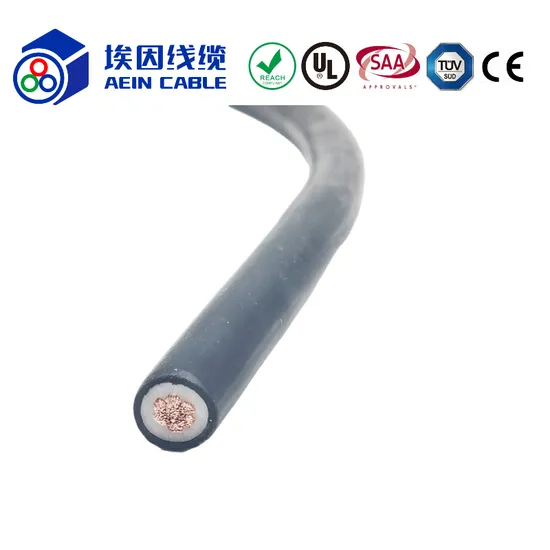

CE Certified Shanghai Cable Manufacturing Flame-Retardant H01N2-E Flexible Cable 100/100V
Item H01N2-E
Conductor Bare copper
Outer Sheath Cross-linked elastomeric special compound: requirements in accordance with DIN EN 50363-2-2: EM5
Nominal Voltage AC U0/U 100/100 V
Test Voltage 1 kV
Ambient temperature Fix installation min. -40 °C
Flex. operation min. -25 °C
Min. Bending Radius Acc. to DIN VDE 0298 part 3
Color Optional
Certification CE
Application These cables are intended for use with hand-held electrodes at 100V in dry, humid and moist rooms as well as outdoors, where the cables are
subjected to high mechanical stresses.
In other respects the specifications of DIN EN 50565-2 apply.
