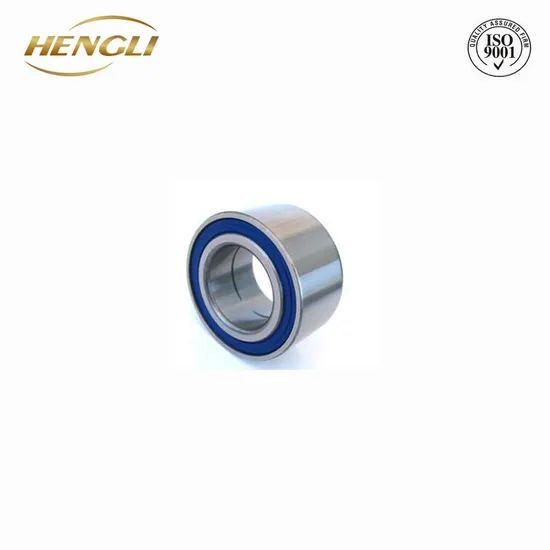

Large load capacity DAC40800038 Wheel Hub Bearings For Automobile Rear Axle Hub

Product Description

Large load capacity DAC40800038 Wheel Hub Bearings For Automobile Rear Axle Hub
Application
Papermaking machinery Speed Reducer
Railway Vehicle Axle Gear Box Bearing Seat Of Rolling Mill,

Roller Crusher, Vibrating Screen Printing Machinery
Woodworking Machinery Various Industrial Reducer
Vertical Belt Seat Adjusting Center Bearing Lifting Transportation

Wheel hub bearing's main function is to provide accurate guide for the rotation of the wheel hub, it carry axial load,
and bear radial load, is a very important component.Wheel hub bearing unit is in the standard angular contact ball bearings
and tapered roller bearings, on the basis of it will be two sets of bearing as a whole, the advantages are the assembly
performance is good, can omit clearance adjustment, light weight, tight structure, and load capacity is big, can first fill grease
when sealed bearing, omit the external wheel hub seal and no maintenance etc, and has been widely used in cars,
in a truck also has a tendency to gradually expand the application.
Chrome Steel Wheel Hub Bearings

Product Name	Wheel Hub Bearings
Precision Rating	P0, P6, P5, P4, P2
Material	Bearing Steel (GCr15)
Clearance	C1 C2 C3
Vibration & Noisy	Z1,Z2,Z3 V1,V2,V3
Seal	ZZ, 2RS, RZ, NR, N
Features	The Assembly Performance is Good, Can Omit Clearance Adjustment, Light Weight, Tight Structure, And Load Capacity is Big.
Application	Wheel Hub Bearing Suitable For Low Noise And High Speed Electromotor, Automobile , Generators, Gas Turbines, Lifting Transportation and Machinery Etc.
Certification	ISO 9001:2008
Packing	1.Neutral Packing Bearing 2.Industrial Packing 3.Commercial Packing Bearing 4.Customize
Delivery Time	30 - 45 Days After The Order is Confirmed
Shippment	1.By Sea 2.By Air 3.By Express
Website	http://hlimachinery.en.made-in-china.com

DAC Series Wheel Hub Bearing Specification

Model	Boundary Dimensions (mm)				Mass	Model	Boundary Dimensions (mm)				Mass
	d	D	B	C	kg		d	D	B	C	kg
DAC20420030/29	20	42	30	29	0.23	DAC40720037	40	72	37	37	0.55
DAC255200206	25	52	20.6	20.6	0.19	DAC40720637	40	72.06	37	37	0.55
DAC25520037	25	52	37	37	0.31	DAC40730034	40	73	34	34	0.56
DAC25520040	25	52	40	40	0.35	DAC40740036	40	74	36	36	0.62
DAC25520042	25	52	42	42	0.36	DAC40740036/34	40	74	36	34	0.58
DAC25520043	25	52	43	43	0.36	DAC40740040	40	74	40	40	0.67
DAC25550043	25	55	43	43	0.44	DAC40740042	40	74	42	42	0.7
DAC25550045	25	55	45	45	0.46	DAC40750037	40	75	37	37	0.62
DAC25550048	25	55	48	48	0.48	DAC39(41)750037	39(41)	75	37	37	0.62
DAC25560032	25	56	32	32	0.34	DAC40750039	40	75	39	39	0.64
DAC25600045	25	60	45	45	0.48	DAC40750050	40	75	50	50	0.68
DAC25620048	25	62	48	48	0.5	DAC40760033/28	40	76	33	28	0.54
DAC27520042	27	52	42	42	0.33	DAC40760033	40	76	33	33	0.52
DAC27520043	27	52	43	43	0.33	DAC40760036	40	76	36	36	0.58
DAC27520045/43	27	52	45	43	0.34	DAC40760038	40	76	38	38	0.6
DAC27530043	27	53	43	43	0.34	DAC40760040/38	40	76	40	38	0.52
DAC27600050	27	60	50	50	0.56	DAC40760041/38	40	76	41	38	0.52
DAC28580042	28	58	42	42	0.47	DAC40760441/38	40	76.04	41	38	0.7
DAC28580044	28	58	44	44	0.48	DAC40800030.2	40	80	30.2	30.2	0.65
DAC28610042	28	61	42	42	0.56	DAC40800030.2	40	80	30.2	30.2	0.65
DAC29530037	29	53	37	37	0.35	DAC40800031	40	80	31	31	0.65
DAC30550026	30	55	26	26	0.26	DAC40800036/34	40	80	36	34	0.74
DAC30550032	30	55	32	32	0.28	DAC40800038	40	80	38	38	0.8
DAC30580042	30	58	42	42	0.4	DAC40800038.1	40	80	38.1	38.1	0.8
DAC30600037	30	60	37	37	0.42	DAC40800040	40	80	40	40	0.86
DAC30600337	30	60.03	37	37	0.42	DAC40800045/44	40	80	45	44	0.95
DAC30620038	30	62	38	38	0.52	DAC40820040	40	82	40	40	0.88
DAC30620048	30	62	48	48	0.56	DAC408402538	40	84.02	53.8	53.8	0.97
DAC30630042	30	63	42	42	0.57	DAC401080032/17	40	108	32	17	1.04
DAC30640042	30	64	42	42	0.49	DAC41680040/35	41	68	40	35	1.06
DAC30680045	30	68	45	45	0.58	DAC42720038	42	72	38	38	0.54
DAC32580065/57	32	58	65	57		DAC42720038/35	42	72	38	35	0.52
DAC32670040	32	67	40	40	0.61	DAC42750037	42	75	37	37	0.6
DAC32700038	32	70	38	38	0.62	DAC42760033	42	76	33	33	0.65
DAC32720038	32	72	38	38	0.64	DAC42760038/35	42	76	38	35	0.65
DAC32720345	32	72.03	45	45	0.6	DAC42760039	42	76	39	39	0.62
DAC34620037	34	62	37	37	0.41	DAC42760040	42	76	40	40	0.68
DAC34640034	34	64	34	34	0.43	DAC42760040/37	42	76	40	37	0.66
DAC34640037	34	64	37	37	0.47	DAC42770039	42	77	39	39
DAC34660037	34	66	37	37	0.5	DAC42780036/34	42	78	36	34
DAC34670037	34	67	37	37	0.5	DAC42780040	42	78	40	40
DAC35618031	35	61.8	31	31	0.42	DAC42780041/38	42	78	41	38	0.75
DAC35618040	35	61.8	40	40	0.43	DAC42780045	42	78	45	45
DAC35620031	35	62	31	31	0.35	DAC42800036	42	80	36	36	0.83
DAC35620040	35	62	40	40	0.43	DAC42800036/34	42	80	36	34	0.81
DAC35640037	35	64	37	37	0.46	DAC42800037	42	80	37	37	0.68
DAC35650035	35	65	35	35	0.4	DAC42800038	42	80	38	38
DAC35650037	35	65	37	37	0.51	DAC42800042	42	80	42	42	0.82
DAC35650045	35	65	45	45	0.6	DAC42800045	42	80	45	45	0.86
DAC35660032	35	66	32	32	0.42	DAC42800342	42	80	42	42	0.82
DAC35660033	35	66	33	33	0.43	DAC42820036	42	80	36	36	0.77
DAC35660037	35	66	37	37	0.48	DAC42820036	42	80	36	36	0.8
DAC35670042	35	67	42	42	0.6	DAC42820037	42	82	37	37	0.79
DAC35680233/30	35	68.02	33	30	0.47	DAC42840034	42	84	34	34	0.75
DAC35680037	35	68	37	37	0.52	DAC42840036	42	84	36	36	0.84
DAC35680042	35	68	42	42	0.62	DAC42840039	42	84	39	39	0.93
DAC35680039/36	35	68	39	36	0.56	DAC42840236	42	84.02	36	36	0.84
DAC35720027	35	72	27	27	0.48	DAC43/45820037	43/45	82	37	37	0.76
DAC35720028	35	72	28	28	0.49	DAC43760043/40	43	76	43	40	0.72
DAC35720228	35	72.02	28	28	0.49	DAC43760043	43	76	43	43	0.73
DAC35720233/31	35	72.02	33	31	0.54	DAC43770042/38	43	77	42	38
DAC35720033	35	72	33	33	0.58	DAC437745.5/41.5	43	77	45.5	41.5
DAC35720433	35	72.04	33	33	0.58	DAC43780044	43	78	44	44
DAC35720434	35	72.04	34	34	0.58	DAC43780045/44	43	78	45	44
DAC35720034	35	72	34	34	0.58	DAC43790041/38	43	79	41	38	0.77
DAC35720037	35	72	37	37	0.58	DAC43790045	43	78	45	45	0.84
DAC35720042	35	72	42	42	0.62	DAC43800038	43	80	38	38	0.75
DAC35720054	35	72	54	54	0.95	DAC43800040	43	80	40	40
DAC35720042	35	77	42	42	0.7	DAC43800045	43	80	45	45	0.91
DAC35720042	35	77	42	42	0.7	DAC43800050/45	43	80	50	45	0.91
DAC35800047	35	80	47	47	0.7	DAC43820045	43	82	45	45	0.96
DAC36680033	36	68	33	33	0.47	DAC43(45)820037	43(45)	82	37	37	0.76
DAC367629.2/27	36	76	29.2	27	0.55	DAC4482.50037	44	82.5	37	37	0.73
DAC36760029/27	36	76	29	27	0.55	DAC44840042/40	44	84	42	40	0.92
DAC37680034	37	68	34	34	0.52	DAC45770050/45	45	77	50	45
DAC37720033	37	72	33	33	0.58	DAC45800045	45	80	45	45	0.78
DAC37720037	37	72	37	37	0.59	DAC45830039	45	83	39	39	0.83
DAC37720237	37	72.02	37	37	0.59	DAC45840039	45	84	39	39	0.85
DAC37720437	37	72.04	37	37	0.59	DAC45840041/39	45	84	41	39	0.8
DAC37740037	37	74	37	37	0.61	DAC45840042/40	45	84	42	40	0.94
DAC37740045	37	74	45	45	0.79	DAC45840043	45	84	43	43	0.96
DAC38640032/29	38	64	32	39		DAC45840045	45	84	45	45	1
DAC38640036/33	38	64	36	33		DAC45840053	45	84	53	53
DAC38640036/33	38	64	36	33		DAC45850023	45	85	23	23	0.54
DAC38650052/48	38	65	52	48		DAC458500302	45	85	30.2	30.2	0.63
DAC38700037	38	70	37	37	0.56	DAC45850045	45	85	45	45	0.96
DAC38700038	38	70	38	38	0.57	DAC45850047	45	85	47	47	0.98
DAC38710033/30	38	71	33	30	0.5	DAC45850051	45	85	51	51	1.02
DAC38710039	38	71	39	39	0.58	DAC45870041/39	45	87	41	39	0.92
DAC38710233/30	38	71.02	33	30	0.5	DAC45880039	45	88	39	39	0.9
DAC38720036/33	38	72	36	33	0.56	DAC45900054/51	45	90	54	51
DAC38720236/33	38	72.02	36	33	0.56	DAC46780049	46	78	49	49
DAC38720034	38	72	34	34	0.55	DAC46800043/40	46	80	43	40
DAC38720040	38	72	40	40	0.63	DAC47810053	47	81	53	53	1.02
DAC38730040	38	73	40	40	0.67	DAC47850045	47	85	45	45	0.85
DAC38740036	38	74	36	36	0.62	DAC47880055	47	88	55	55
DAC38740036/33	38	74	36	33	0.61	DAC47880055	47	88	55	55
DAC38740236/33	38	74.02	36	33	0.59	DAC47880057.4	47	88	57.4	57.4
DAC38740040	38	74	40	40	0.67	DAC48860042/40	48	86	42	40	0.96
DAC38740050	38	74	50	50	0.85	DAC48890044	48	89	44	44	1.07
DAC38740450	38	74.04	50	50	0.85	DAC48890044/42	48	89	44	42	1.07
DAC38760043/40	38	76	43	40		DAC48900042	48	90	42	42	1.09
DAC38760043	68	76	43	43		DAC49840042/40	49	84	42	40	0.99
DAC38800236/33	38	80.02	36	33		DAC49840043	49	84	43	43
DAC39/41750037	39/41	75	37	37	0.62	DAC49840048	49	84	48	48	1.06
DAC39680037	39	68	37	37	0.48	DAC49840050	49	84	50	50	1.08
DAC39680637	39	68.06	37	37	0.48	DAC49880046	49	88	46	46	1.05
DAC39680737	39	68.07	37	37	0.48	DAC49900045	49	90	45	45	1.08
DAC39720037	39	72	37	37	0.6	DAC50900040	50	90	40	40
DAC39720037	39	72	37	37	0.6	DAC51890044/42	51	89	44	42
DAC39720637	39	72.06	37	37	0.6	DAC51910044	51	91	44	44
DAC39720040	39	72	40	40	0.61	DAC51960050	51	96	50	50
DAC39740036	39	74	36	36	0.54	DAC52910040	52	91	40	40
DAC39740036/34	39	74	36	34	0.52	DAC54900050	54	90	50	50
DAC39740039	39	74	39	39	0.66	DAC54920050	54	92	50	50
DAC39.1740036/34	39.1	74	36	34	0.66	DAC54960051	54	96	51	51
DAC40700043	40	70	43	43	0.63	DAC55900060	55	90	60	60

About Us
HENGLI Machinery Company is a well-established Chinese bearing supplier. We design, manufacture and wholesale bearings.
Our specialized manufacturer of Spherical Roller Bearing & Cylindrical Roller Bearing, LUAN Rolling Bearing Co., Ltd was
established in 1970 and is accredited by the Chinese Ministry of Machine Building.
We invested in two additional specialized bearing factories, which allow us to provide our clients with top of the line products such
as Needle Roller Bearings, Spherical Plain Bearings, Rod Ends Bearings, Ball Joint Bearings, Tapered Roller Bearings,
Wheel Hub Bearings and Non-Standard Bearings.

FAQ
Q1 - What is our advantages? A - Manufacturer - Do it only with the Best;
-Your Choice make different.
Q2 - Our Products
A - Spherical Roller Bearing, Cylindrical Roller Bearing, Needle Roller Bearing, Cam Followers, Thrust Bearing
- Spherical Plain Bearing, Rod End, Ball Joint, Wheel Hub, Tapered Roller Bearing
Q3 - Process of our production
A - Heat Treatment - Grinding - Parts Inspection - Assembly - Final Inspection - Packing
Q4 - How to customize bearing(non-standard) from your company?
A -We offer OEM,Customized(Non-standard) service and you need to provide drawing and detailed Technical Data.
Q5 - What should I care before installation?
A - Normally, the preservative with which new bearings are coated before leaving the factory does not need to be
removed; it is only necessary to wipe off the outside cylin­drical surface and bore, if the grease is not compatible
with the preservative, it is necessary to wash and carefully dry the bearing.
-Bearings should be installed in a dry, dust-free room away from metal working or other machines producing
swarf and dust.
Q6 - How to stock and maintenance my bearings right?
A - Do not store bearings directly on concrete floors, where water can condense and collect on the bearing;
-Store the bearings on a pallet or shelf, in an area where the bearings will not be subjected to high humidity
or sudden and severe temperature changes that may result in condensation forming;
-Always put oiled paper or, if not available, plastic sheets between rollers and cup races of tapered roller bearings.

---

>> HDPE PP Sheet Film Electro-Fusion Sleeve Plastic Board Extrusion Machinery
>> Aluminum Curtain Wall Panels Wc67K E21 100t 3200 2 Axis Press Brake
>> 1000L Gallon Stainless Steel Vacuum Steam Electric Heating and Cooling Double Jacketed Aging Fermentation Reactor Storage Mixing Tank
>> HC-R018 Stainless steel washing station pool for pet washing machine dog wash machine
>> Shd High Efficiency Heavy Duty Industrial Wood Chipper/Wood Chipper Machine
>> 4*4/Ht/at/Mt/Van/SUV Haida/Joyroad/Sailun/Chaoyang/Passenger Car Tire Summer/Winter/All Season PCR 235/75r15 Tyre
>> Px 250-1500 Watts PRO Audio Power Amplifier with USB for DJ Equipment
>> Used Zooomlion 40m with Faaw Chassis Beton Concrete Pump Construction Machinery
>> High-Performance Pulverizer for PP, PE, and PVC Materials
>> Full Automatic Aluminum Foil Thick Cardboard Paperboard Paper Plates Tray Forming Machine
>> 200-2000ml Small Plastic Water Bottle Cap Lid Servo Injection Molding Machine
>> 210t Nylon Parachute Portable Two Person Outdoor Double Camping Hammock
>> Vmc7032 CNC Milling Machine for Processing Metal with Best Price
>> Musical Night Light Mobile Baby Bed Bell with 108 Song
>> Outdoor multifunctional emergency usb charging led hand crank flashlight radio speaker 2000 2500 3000 4000 5000
>> Nature′s Choice: Biodegradable, Disposable Outdoor Tablecloths
>> 2t/2.5t/3t/3.5t/5t Royal Standard Export Packing lithium Battery Truck Electric Pallet Jack
>> watches direct from manufacturer SKMEI 9237 trend design men fashion waterproof moon phase luxury mechanical watch
>> 1/2N-fold paper hand towel holder toilet paper dispenser
>> home video Smart WiFi video doorbell wireless doorbell with camera intercom Wireless Ring Apartment Room
