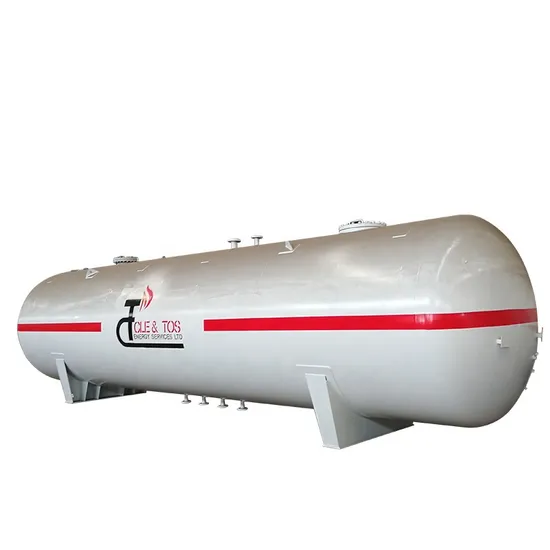

China Supplier LPG Tank Manufacturer 50m3 LPG Storage Tank

Product Description

Product specificiation

item	specification
produce name	LPG storage tank(propane)
capacity	50m3
tank material	Q235
material thickness	14mm tank,16mm end
tank weight	10640kg
payload	19950kg
overall dimension	9182*2728*3318mm

we produce 5-120m3 LPG storage tank (china standard)

5-120m3 lpg storage tank
Design information		Valume m3	DN(mm)	Thickness(mm)		Weight (kg)		Overall size
				Tank	End	Tanker	Filling	L*W*H(mm)
Filling medium:liquefied petroleum gas(Propane) Design pressure :1.77MPa Corrosion allowance:1mm Medium density:420kg/m3 Tank material:Q345R		5(5.6)	1600	10	10	2030	1995	3070*1620*2210
		8	1600	10	10	2540	3192	4270*1620*2210
		10	1600	10	10	2950	3990	5260*1620*2210
		12	1800	10	12	3360	4788	5034*1820*2410
		15	1800	10	12	3920	5985	6224*1820*2410
		20	2100	12	12	5050	7980	6154*2124*2714
		20	2200	12	14	5080	7980	5608*2224*2814
		25	2100	12	12	5970	9975	7594*2124*2714
		25	2200	12	14	6020	9975	7008*2224*2814
		32	2300	12	14	7110	12768	8158*2324*2914
		32	2400	14	14	7710	12768	7508*2428*3018
		40	2300	12	14	8630	15960	10040*2324*2914
		40	2400	14	14	9380	15960	9270*2428*3018
		45	2700	14	16	10220	17955	8342*2728*3318
		50	2600	14	16	10910	19950	9912*2628*3218
		50	2700	14	16	10640	19950	9182*2728*3318
		50	2800	16	16	11470	19950	8612*2832*3422
		60	2700	14	16	12750	23940	10962*2728*3318
		65	2700	14	16	13590	25935	11832*2728*3318
		70	2700	14	16	14480	27930	12712*2728*3318
		80	3100	16	18	17000	31920	11166*3132*3722
		80	3200	18	18	18140	31920	10516*3236*3826
		100	3100	16	18	20410	39900	13866*3132*3722
		100	3200	18	18	21800	39900	13016*3236*3826
		120	3400	18	20	24960	47880	13820*3436*4026

Company information

1. ChengLi Special Automobile Co.,Ltd, which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW .Our company has independent export right and has a mount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such as water truck, garbage truck,sewage suction truck, fuel tank, high-altitude operation truck, truck mounted crane, dump truck, LED advertising truck,LPG truck/trailer,LPG filling tank, van truck, semi-trailer, fire engine, refrigerator truck, tractor, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.

2.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.

3.Quality control:our company truck pass ISO,3C,ASME certification.
our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.

4. Export market: Africa,Asia,South America,Pacific and so on

5.Our company cooperate with famous chasis manufacturers,such as DONGFENG,SHINOTRUK,FOTON,ISUZU JAC,JMC ,SHACMAN,FAW and etc.

6.Factory Show:

Service
1.We can product truck accroding the customer's requirments(color,size,logo and so on)
2.We can send our technician to arrive the customer's country to provide the service .
3.We can train customer's workers for free.
4.Our truck warranty:12 months.we can provide the parts for free at the frist year.

Success Case Show
Customer Visit FAQ

1.Payment term.
-T/T,30% deposit ,and pay the blance before shippment from our factory
-L/C,L/C price is expensive than T/T price.

2.What about quality ?
Our truck are brand new truck,Our survival is based on quality and credit standing is the guarantee of our success. We will do as we can to treat customers honestly, manage flexibly, guarantee high quality but low price, and keep high efficiency.
our company truck pass ISO,3C,ASME certification.

3.Visit our factory
Our factory are in suizhou city,hubei province china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province) .and our driver will pick up you at wuhan railway station or wuhan tianhe airport.
And if need the invitation letter ,pls send your private information and company information to me.
