Sanyeflex SAE 100r1 Hydraulic Hose

Product Description

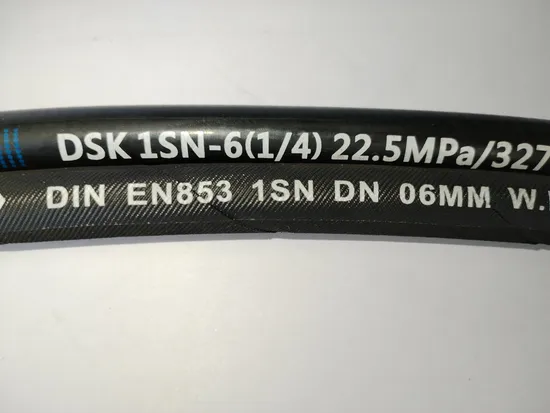

SANYEFLEX Reliable Hydraulic Hose ManufacturerProduct Description SAE 100R1 AT/DIN EN 853 1SN
INNER TUBE:oil resistant synthetic rubber
REINFORCEMENT: one high tensile steel wire braid
COVER:abrasion and weather resistant synthetic rubber
TEMPERATURE RANGE: -40ºC to +125ºC Product Parameters

HOSE ID		Wire OD	Hose OD	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight
Inch	mm	mm	mm	MPa	Psi	MPa	Psi	mm	kg/m
3/16	4.8	9.5	11.8	25.0	3630	100	14280	90	0.19
1/4	6.4	11.1	13.4	22.5	3270	90	12840	100	0.21
5/16	7.9	12.7	15.0	21.5	3120	85	12280	115	0.24
3/8	9.5	15.1	17.4	18.0	2610	72	10280	130	0.33
1/2	12.7	18.3	20.6	16.0	2310	64	9180	180	0.41
5/8	15.9	21.4	23.7	13.0	1890	52	7420	200	0.45
3/4	19.0	25.4	27.7	10.5	1530	42	6000	240	0.58
1	25.4	33.3	35.6	8.8	1280	35	5020	300	0.88
1-1/4	31.8	40.5	43.5	6.3	920	25	3600	420	1.23
1-1/2	38.1	46.8	50.6	5.0	730	20	2860	500	1.51
2	50.8	60.2	64.0	4.0	580	16	2280	630	1.97

Wrapped Surface Hydraulic Hose Smooth Surface Hydraulic HoseApplication
Company ProfileOur factory covers a total area of 144,000 square meters and is the largest hydraulic hose manufacturer in North China. We have 8 sets of MAGNATECH spiral hose production lines, 45 sets of Mayer high-speed braiding machines, and 20 sets of complete testing equipment and test instruments.The monthly output can reach 2.6 million meters.
Our products have been exported to more than 30 countries and regions, the quality has been verified, we can provide certificates such as MSHA, ISO,and we are glad to provide you with samples for your testing.Factory tourPackaging & Shipping
Why Choose SANYEFLEX?Specialized in hydraulic hose production research and development for 20 years, has rich experience and technology.Imported raw materials directly from the United States, Japan, South Korea.Automatic mixer workshop.Using intelligent production line fully automated transfer processEach hose are pass strict inspection before delivery.Reliable product quality, safety performance is high, reduce the cost of the enterprise.FAQQ1:Can you do OEM?
A: Yes, we can do OEM products. Welcome!
Q2: Are you a factory or trading company?
A: Factory! We are 100% manufacturer, and we have 20 years experience in hydraulic rubber hose production. Welcome to visit our factory.
Q3: Is free sample available?
A: Yes, free samples available, customer only pay freight cost.
Q4: How about your delivery time?
A: Within 20 days after you pay the payment.
Q5: What's your terms of packing?
A: Generally in rolls by well wrapped with colorful poly stripes or as your requirement.
Q6: What's your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.If you have another question, pls feel free to contact us!

---
