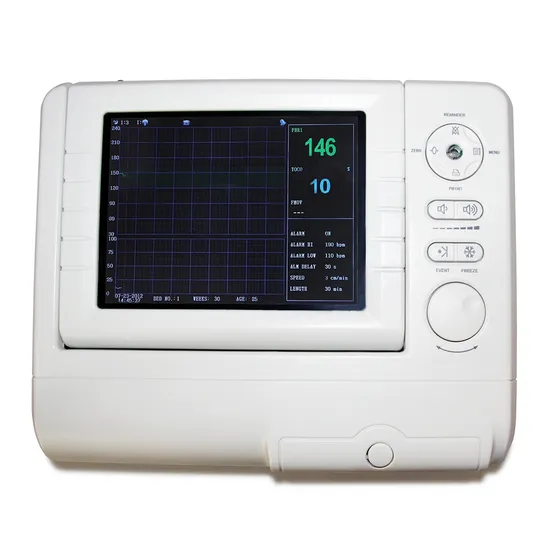

Portable Color Ultrasound Machine Ctg Fetal Monitor

Product Description

Light dexterous appearance, tops horizontally and walls can be hoisted
8.0 "screen color LCD display, rotatable screen to 60°
Display of the patient data and curve clearly
FHR 120 BPM~160 BPM normal range label
Manual records fetal movement
Sound and color alarm for high and low fetal heart rate
Continuous 24-hour real-time monitoring function
Continuous 12-hour patient curve and data storage , playback and print
With picture freeze function
Optional English interface
Single, Twins Monitoring optional
9 crystal board band pulsed wave transducer
Extra-long life, high-resolution built-in thermal recorder
Built-in communication port, can be connected with central monitoring system.
Main performance Anti-shock types: Facilities I, no internal power supply Anti-electric Shock Degree: B Working Voltage: AC 100 V~240 V Frequency:
50 Hz/60 Hz P<60 VA Fuse: T1.6AL250VDisplay
Dimensions: 8.0 "color LCD display, folding 60 degree
Display
Content: bed No. , pregnancy weeks, age, paper speed, date, time , volume, alarm status, transducer connection status, recorder
status, FHR data and wave, Contraction data and wave, Fetal move times and mark etc. Record Paper two-double type Z
Print Width: 112 mm
Valid Print Width: 104 mm
Paper output speed: 1 cm/min,2 cm/min,3 cm/min(optional)
Data Precision: ±5 %(X Roll),±1 %(Y Roll)
Record Content: hospital , bed No. ,name, pregnancy weeks, patient No., paper speed, date, time , FHR data and wave, Contraction
data and wave, Fetal move times and mark etc.
Ultrasound probe:
Nominal Frequency: 1.0 MHz
Work Frequency: 1.0 MHz±10 %
Negative peak sound pressure : p_<1 MPa
Output beam intensity : Iob<20 mW/cm2
The peak time space peak intensity: Ispta<100 mW/cm2
The average time space peak intensity: Isata<10 mW/cm2
FHR Rang: 50 BPM~240 BPM
Resolution: 1 BPM
Accuracy : ±2 BPM

---
