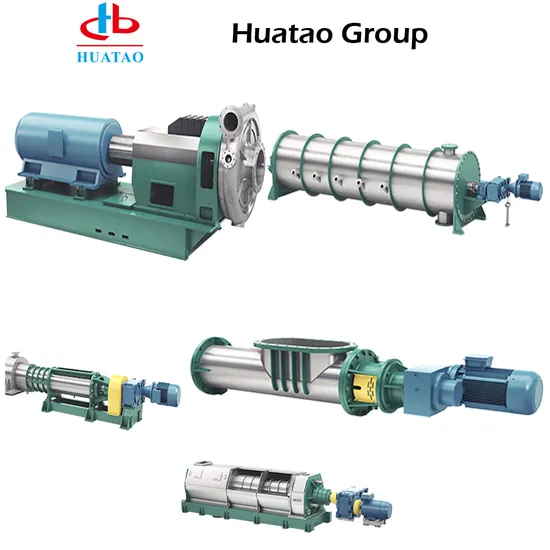

Disc Hot Dispersing System for Paper Pulp Making

Product Description

Hot Dispersing System Product Description
Application:
This equipment applies to treatment of all kinds of pulp using waste paper as raw materials, being able to efficiently disperse all kinds of ink and treat all kinds of stickies and other impurities.
Features:
The clearance between dynamic disc and static disc can be set within a certain range, which can achieve running under smaller clearance and is more beneficial to separating ink adhering to fiber and dispersing dirt speckles,stickies and paint particles.
Product Parameters

Type	HT-1	HT-2	HT-3
Nominal dia.: mm	Φ450	Φ710	Φ1050
Consistency of inflow pulp: %	25-30
Consistency of outflow pulp: %	4-12
	25-30
Treating temperature: ºC	110-120(AOCC)
	80-90(ONP)
Capacity of product : t/d	30-70	80-300	280-600
Power of main motor: kw	110-200	280-800	630-1250
Power pf feeding screw:kw	5.5	5.5-11	11-18.5
Power of pulg screw:kw	15	22-45	55-90
Power of fultter:kw	5.5	5.5-11	15-18.5
Power of speedy heater:kw	7.5	7.5-22	30-45
