Fully Automatic PP Film Blown Machine with High Accurate Mould

Product Description

Fully Automatic PP Film Blown Machine with High accurate mould We are Film Blowing Machine manufacturer/supplier from china factory. We also can produce the Film Blowing Machine according to the client's requirement.
We are always try our best to become the good Film Blowing Machine manufacturer/Supplier and welcome the customer from all over the world to contact with us. PRODUCT INFORMATION Categories: Film Blowing Machine Brand: Zhuxin Paper bag machine, film blowing machine Model: 3SJ-50/55/65 FOB port: Ningbo sea port Terms of Payment: L/C, Western Union, T/T Comments: It with single rolling friction, lift up and down which is suitable for industrial film and agricultural film.

Model	3SJ-50	3SJ-55	3SJ-65
Suitable material	HDPE,LDPE,LLDPE	HDPE,LDPE,LLDPE	HDPE,LDPE,LLDPE
Reduced diameter of film(mm)	800-1200	1000-1500	1200-2000
Single-face Thickness of film(mm)	0.028-0.20	0.028-0.20	0.03-0.20
Max.output(kg/h)	120	150	200
Extruder
Screw diameter	50*3	55-60-55	60-65-60
Screw L/D	28:1/30:1
Screw material	Sacm-645/38 crmoala
Cylinder material	Sacm-645/38 crmoala
Cylinder cooling(w)	370*2/3	370*2/3	550*3/3
Driving motor(kw)	15*3	A18.5+B22+C18.5	A22+B30+C22
Cylinder temperature control	3*3	3*3	3*3
Average power consume(kw)	80	95	120
Type of die
Die size(mm)	280	350	500
Temperature control	4
Air ring	1
Air blower power (kw)	7.5	11	15
Center steady stick	1
Take up unit
Roller width(mm)	1600	2100	2600
Take-up speed(m/min)	5-50
Take-up motor(2.2)	1.5	2.2	2.2
Winding Unit
Type	Surface friction type
Winding motor(kw)	1.5	2.2	2.2
Winding speed(m/min)	5-50	5-50	5-50
Voltage	380V,50HZ,3PHASE
Outline diameter (L*W*H)(mm)	9500*4500*7500	10500*5000*9000	11500*5500*10000
Weight(T)	5.5	4	5
Optional equipment
1.Auto loader 2.Film surface treater 3.Air compressor 4.Air cooling device 5.Air shaft

PERFORMANCE AND CHARACTERISTICS Applicable for the materials as LDPE, HDPE, LLDPE, etc. It is widely used to manufactuer composite film basic material, liquid film, contractive film, protective film, cable film, macromolecule adhensive film, multi-functional industrial film products, can better meet operational requirements of high accuracy and high speed color printing, composite and painting products.
2.Features of the machine set
The tractor adopts horizontal swing rotation which replaces the die rotation and simplifies die structure. It solves problems of leakage, poor, sealing, and maintenance and improves the quality of film.
The IBC internal bubble cooling system improves film quality and transparency, finally increases the output.
High precision fold diameter control system reduces deviation by controlling air blower speed and adjusting air flow.
EPS photoelectron correct errors system can correct automatically, which ensures the roll film evenly. High accurate mould and effective air cooling system ensure high quality film and output.,
Company Profile

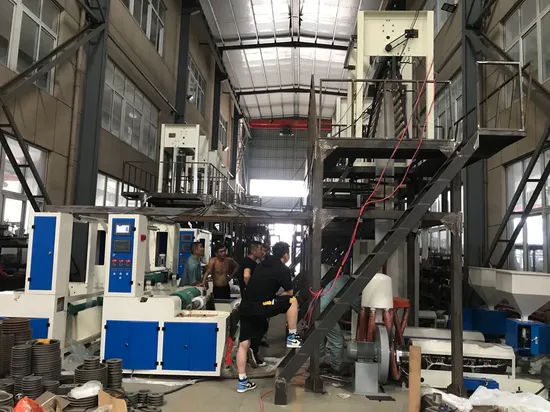

WORKSHOP
OUR CERTIFICATES
TRADE EXHIBITION
SERVICE
FAQ
1.Q:Are you a factory or trading company ?
A:We are a factory

2.Q:Where is your factory located ?How can I visit there ?
A:Our factory is located in Ruian City , Zhejiang Province ,China
About 40 minutes by plane from shanghai (5 hours by train )

3.Q:How is your after-sales service ?
A:We have been in this printing machine line of business for more than many years ,
We will send our professional engineer to install and test machine .So our after-sales service is always reliable.

4.Q:If your machines can print ?
A :Our machines is multifunction , do roll to roll printing , such as paper, plastic film , woven bag , nonwoven .
Surely , you can offer your products, Let us confirm it .We will suggest you the best project.

5 .Q:How does your factory do regarding the quality control ?
A:We are the technical factory, we put more time on the quality control.
Question: Are you Manufacture or Trading Company?
Answer:We are printing machines manufacturer nearly 10years, we had established our own trading company to expand our foreign market business, and provided our customer better service.
Question: Where is your factory located? How can I visit there?
Answer: Our factory is located in Wenzhou City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you.

6.Q: How does your factory do regarding quality control?
Answer: Most our machine mechanical parts are processed by ourselves. So we can better control our quality from beginning. Electrical Part we had cooperated with good foreign brand, such as ABB, Yaskawa, Siemens, Airtac, NSK, Delta, Panasonic etc. And all our machine will do running test before shipping.

7.Q:Do you company provided foreign country machine installation services?
Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.

8.Q: How your company provided after sales service?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) each machines we will give some spare parts free when shipping machines. Within guarantee machine parts damage, we will send to you free by express asap. If customer required engineer go to solve problem is possible.

WELCOME YOUR INQUIRY ,PLEASE CONTACT HOLIDAY +8613868384968
We have been working hard to become your Purchasing Guide and provide you one-stop Purchasing service. We looking forward hear you soon.

---
