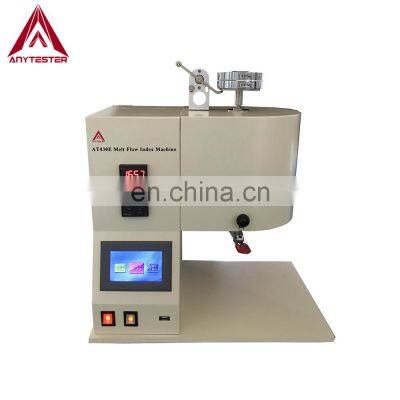

AT430E Melt Flow Index Tester is used to measure the melt flow rate (MFR) of engineering plastics including polyethylene (PE), polyarylsulfone, fluro-plastic, nylon, polystyrene, polypropylene ABS resins, and POM resins. It can also measure the melt volume rate (MVR) of various high polymers whose melt volume rate is between 500cm3/10min~1000cm3/10min in the melt flow state, such as melt bow materials of polypropylene or other nanofiber materials. It is widely used industries of plastic production, plastic products, and petroleum chemical engineering and other relative academies, scientific research institutes and quality control departments.
Standard
ISO 1133-1
| ASTM D1238
| GB/T 3682-2000
|
ISO 1133-2
| JB/T 5456
|
|
Specification
Model
| AT430E
|
Measuring range
| (0.1~2000)g/10min for MFR
(0.01~3000)cm3/10min for MVR
|
Temperature range
| 80℃~400℃
|
Temperature error
| ≤±0.2℃
|
Temperature fluctuation
| ≤±0.2℃
|
Temperature resolution
| 0.1℃
|
Temperature recovery time
| ≤4 min for GB standard
≤6 min for ASTM standard
|
Display mode
| Touch screen operation
|
Standard die
| Tungsten carbide, Φ2.095±0.005mm
|
Height of standard die
| 8.000±0.020mm
|
Details
★ Large colorful touch screen control and display, good view and more information; convenient and simple to operate; ★ Technology of microcomputer processing, integration and digitalizing;
★ Voice prompt and touch screen operation, easy to u nderstand;
★ High-precision temperature controller;
★ Automatic and manual cutting of material;
★ Equipped with encoder for measuring material of large MVR;
★ With functions of calculation of test result, reserving decimals, round-off of result for accurater calculation result;
★ Be able to manually jump any step during testing, convenient to measure;
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging
|
|
Size
| 460×280×415mm (L×W×H)
|
Weight
| Approx. 50kg
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Term
|
T/T
| EXW
|
30% T/T in advance, paid the balance before shipment
|
|
| FOB
|
|
|
| CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
| CIF
|
|
| L/C
| L/C amount above 50,000 usd, we can accept L/C at sight
|
|
| West Union
|
Amount lower than 5000usd
|
|
| West Union
|
|
|
Delivery Time
| 7~10days after receiving payment for one container
|
|
|
