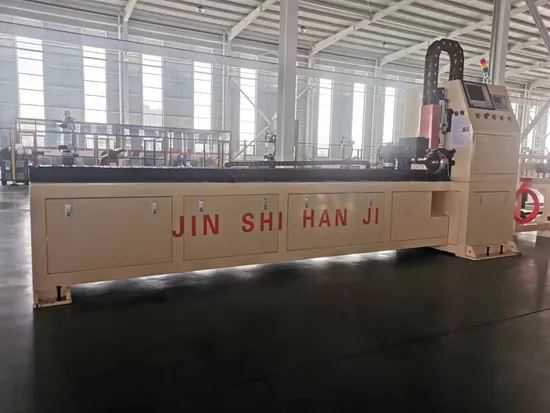

Fully Automatic Laser Cutting Tool

Product Description

The equipment is mainly suitable for cutting Q345 steel pipe, the equipment cut both ends of the steel pipe saw smooth, no burr, reduce artificial grinding. Automatic production can be realized, including automatic feeding, cutting, unloading, feeding, cutting speed can be adjusted, reduce the work intensity, improve the work efficiency, save costs.
Product details
Scope of application: raw material length: 5-7 meters. Tube diameter: Φ48 tube wall thickness: 2.5-3.5MM.
The cutting length is 500-3000 mm. (Can be customized according to customer requirements)
Equipment features:
1. Fast cutting speed, small cutting, save raw materials.
2, adopt PLC+ industrial touch screen mode, man-machine interface; One-key operation, simple operation, convenient, stable and reliable performance.
3. Automatic feeding and unloading. Reduce the intensity of work.
4, servo motor size adjustment, convenient and fast, more accurate size.
5. The cutting gun automatic follow up system is added to make the cutting more smooth.

Input power supply	Three-phase four-wire 380V±5%
Compressed air	(1.4 to 1.6Mpa) must be dry
Spindle speed	0-100/rpm (adjustable) servo control
Spindle rotation mode	Servo drive
Adjust the size positioning mode	Servo motor + gear and rack
Clamping mode	Pneumatic chuck (0.4--08Mpa)
Cutting head cooling mode	Water cooling
Host size: length * width * heigh	4200 * 1200 * 1600
Feeding mod	Leather wheel driven by servo motor (speed adjustable)

Feed drive motor	750W servo motor + reducer
Feeding platform size (L x W x H)	5000*2000*1150 (welding of square pipe and steel plate)

Main configuration

Main structure	Box: square pipe, steel plate Q235A Casting: HT250
Pneumatic system	Cylinder, solenoid valve
Electrical control system	Circuit breaker, contactor, key switch PLC, touch screen
laser	3000W
Cutting head	3000W
Servo motor/driver	1500W/750W
chiller	3000W

Frequently Asked Questions
Q1:What kind of machine I should choose?
-Very easy to choose. Just tell us what you want to do by using a laser cutting machine, then let us give you perfect solutions and suggestions. Different materials and different models apply to the different machines. Please tell us what material you want to cutting or engrave. And what's the MAX size of carved material? We will recommend the most suitable model and the best price for you.
Q2:What can it cut? How thick can it cut at most?
-Laser cutting machines for metal usually deal with carbon steel, stainless steel, aluminum, brass, and alloy. The maximum thickness is different between different models and materials. Please check the product introduction page.
Q2:What can it cut? How thick can it cut at most?
-Laser cutting machines for metal usually deal with carbon steel, stainless steel, aluminum, brass, and alloy. The maximum thickness is different between different models and materials. Please check the product introduction page.
If I have some problems, what should I do?
-You can contact our salesman directly, our engineer will check the problem. We Provide proofing service before sale and free technical training, online technical guidance, video guidance
Q5:How long is the warranty?
-We offer a 1-year warranty(except for the consumable parts like Lens). The supplier will provide detailed information as soon as possible.
Product characteristics
Faster cutting speed, and higher efficiency, can save labor
The high degree of automation, and low requirements for the operator.
With a slag pumping function, no burr in the incision, no slag hanging, and no angle burning.
The power consumption is less, and it's easy to maintain.
Packaging&Shipping
1. Cleaning machine.
2. Wrap all the machine and parts with bubble film and plastic film.
3. Forklift the packed machine to the container.
4. Choose the optimal routes and transportation modes according to the distance.
Company honors and qualifications:
Company location
Company introduction
Renqiu Jinshi Welding Manufacturing Co., LTD., located in Renqiu Economic Development Zone, Hebei Province, covers an area of 100 mu, with a total construction area of about 66,000 square meters. Founded in 1996, is currently the world's leading professional, scale, complete types, strong scaffold equipment manufacturers, the company set research and development, design, production, sales in one. Has applied for the approval of the government research and development institute, there are 1000 square meters of exclusive research and development site. The company has more than 100 employees, including more than 20 core technology R&D personnel and more than 30 on-site technical instructors. In addition, there are 8-10 outsourcing processing plants that have been trained for many years, with an annual output of 600-800 production lines. Golden Lion has more than 20 invention patents and independent intellectual property rights, and has been awarded the honorary titles of "above the standard Enterprise", "High-tech Enterprise" and "Key Protection Enterprise".
With high quality products and excellent reputation, Golden Lion sells well all over the world, helps enterprises solve production problems, helps enterprises develop, and establishes long-term cooperative partnership with well-known enterprises at home and abroad. Your success is the eternal pursuit of Golden Lion welder! Let us hand in hand, sustainable development, create brilliant!
If you have any questions, please contact us!

---
