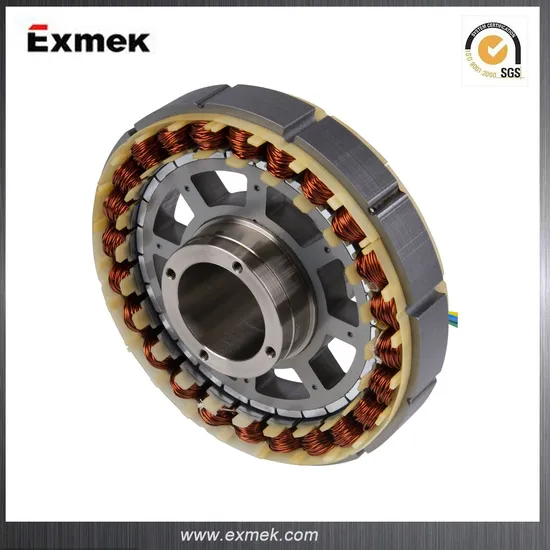

Frameless BLDC /DC /Robot/Electric Torque Motor

Product Description

General information Computer-optimized design maximizes torque density and performance. High overload capability. Low torque ripple. Low inertia. High control accuracy with direct drive.

Specifications

	Unit	MF180AS100	MF180AS200	MF180AS300
Winding Voltage	V	48	48	48
Rated Torque (continuous)	Nm	6	10	20
Rated Current	A	5.3	8.8	17.6
Rated Speed (max)	RPM	300	300	300
Peak Torque	Nm	18	30	60
No Load Speed	RPM	400	400	400
Cogging Torque (Max.)	Nm	0.2	0.3	0.45
Torque Constant (±10%)	Nm / A	1.13	1.13	1.13
Voltage Constant (±10%)	V / KRPM	84	84	84
Terminal Resistance (±12%)	ohm	3.15	0.64	0.32
Terminal Inductance (±30%)	mH	5.0	1.2	0.6
Motor Inertia	Kg-m2	25	40	72
Motor Weight	Kg	2.5	5	10
Poles		26	26	26
Stator length (L1)	mm	15	28	56
Rotor sleeve length (L2)	mm	48	71	96

Mechanical
Packaging & Shipping
1, Waterproof plastic bag packed in foam box and carton as outer packing.
2, Export wooden box packaging for products.
Company Profile Originally motor division of CMEC WUXI- China National Machinery & Equipment Imp & Exp Wuxi Co.,Ltd., one of TOP 20 stated owned Machinery Group Privately owned Ltd company since 2000: Wuxi Junhong Automation Technology Co. Ltd. Exmek Electric ---Registered Brand Name Business: Design and manufacture of motion control products and components Highly qualified personnel UL, CE, RoHS certification ISO 9001, ISO 14000 Company Capabilities Modern Motor Design and Manufacture Part Set Design and Manufacture Magnetic Design Software-Motorsolver Molding Shipping world wide Why Exmek Electric Open for general discussion and questions Time to market or theatre of operations can be substantially reduced Talented team of engineers providing innovative technical solutions One stop "supplier" and complete sub-system Quality products provided at competitive low cost Ability to ship world wide On time delivery Training at Customer locations Fast service on return and repair results Many repeated customers Applications:
Use for swimming pool, automotive, semiconductor, chemical & medical, industrial automation, power tool, instrument, measuring equipment, office automation, various OEM application.
We are open for general discussion and questions. Contact us now!

---
