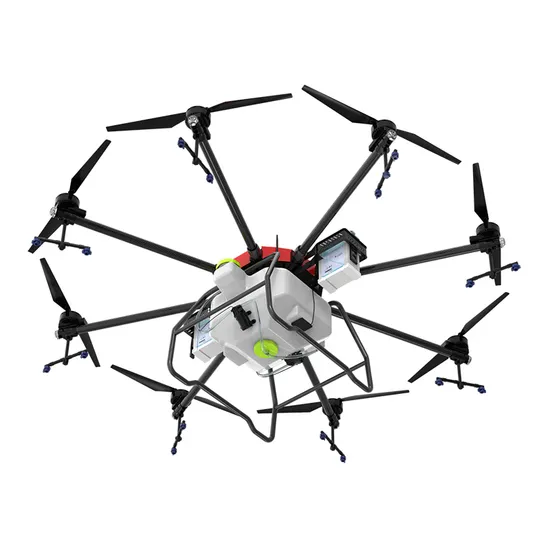

72kg Auto Flight Drone Uav Crop Sprayer Automatic Helicopter Unmanned Autonomous Vehicle

Product Description

72kg Auto Flight Drone Uav Crop Sprayer Automatic Helicopter Unmanned Autonomous Vehicle
- OEM & ODM Service -

Model	D72L-8
Product Material	Aviation carbon fiber + aviation aluminum
Product Extended Size	1860mm*1860mm*545mm
Product folding size	1080mm*1080mm*545mm
Maximum takeoff weight	147KG
Aircraft weight	52KG
Pesticide Barrel	72L
Flight altitude	≤30m
Fly time (unloaded)	20~25 minutes
Fly time (Loaded)	Full load 10~18 minutes
Flight speed	0-20m/s
Spray width	8-15m
Hovering in the air	Hovering in any direction
Spray flow	3-16L/min double pump adjustable
Spray system	Imported high pressure anti-floating atomizing nozzle
Atomization point size	60~90μm
Fly Control	Industrial Version GPS and Controller
Spray efficiency	28 hectares / hour
Safe takeoff and landing wind speed	≤7 Level
Motor speed	5000rpm
Power system	60.9V power polymer computer battery
Intelligent Charer	AC Input 100-240V
Lithium-polymer battery	42000mAh*2

Features
1. The fuselage adopts a closed design, which can prevent pesticides from entering the flight control system
and provide safety guarantee for long-term operation;
2. The plant protection machine has built-in GPS and compass module, with fixed-height and fixed-point flight
function, which can well maintain the spray height and spray route accuracy of the operation;
3. The height limit and flight speed limit of spraying operation can be set. The high-pressure spraying system
has good atomization effect. Under the wind pressure of the aircraft, the drug mist has the characteristics of
strong penetration Leaf face.
4. Modular design of functional components, easy maintenance and upgrade.
5. Using intelligent plug-in battery.
6. Use quick-plug medicine barrel.
7. High-pressure brushless water pump is adopted, and the ESC is fully waterproof.
8. Wear the case, optimize the whole machine, and hide the medicine circuit.
9. 7075 aviation aluminum (high grade) is used for the folding part.
10. Alternating spraying function, the spray head can be switched independently.
11. The arm can be quickly disassembled.

---
