China Precision Turret Milling Machine

US$4,000.00-12,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

X6325W

Structure

Ram

Milling Cutter Type

Vertical Milling Cutter

Milling Cutter Structure

Inlaid Tooth

Controlling Mode

Artificial

Automatic Grade

Manual

Precision

High Precision

Certification

GS, CE

Condition

New

Table Size

1370X305mm 1270X254mm

Spindle Taper

ISO40 R8 Nt40 ISO30

Spindle Motor

3HP or 5HP

Transport Package

1750X1650X2340 mm

Specification

1550KGS

Trademark

tokmc

Origin

China

HS Code

84595900

Production Capacity

100 Sets/Month

Product Description

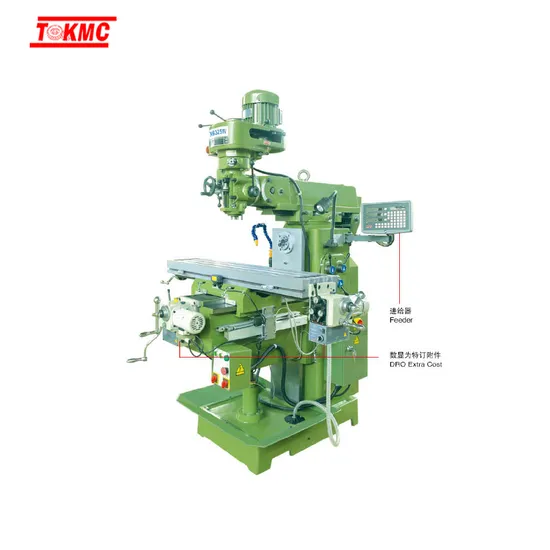

China precision turret milling machine
Grinded machine vise 160mm ,Clamping Kits 52PCS ,Collet Set 15PCS ,Rotary Table HV-8 ,Auto lubricating system ,Hanging control panel ,Axes DRO three axes,digital power feed on X,Y axes, motor on Z axis

Specification	Unit	X6325W	X6330W
Table size	Mm	1270x254	1370x305
T-slot		3-16-65	3-16-65
Longitudinal travel	mm	750/850	800
Cross travel	Mm	400	380
Vertical travel	Mm	400	360
Quill travel	Mm	127	127
Distance between spindle center to column	Mm	155-635	155-635
Distance between spindle nose to table top	Mm	0-460	0-460
Arm travel	mm	400	500
Milling head tilting		90°(L/R) /45°(F/B)	90°(L/R) /45°(F/B)
Spindle taper		R8 (V), NT40(H)	R8 (V), NT40(H)
Spindle speed	R/min	66-4540(V),40-1300(H)	66-4540(V),40-1300(H)
Power of spindle motor	Kw	2.2(V), 3(H)	2.2(V), 3(H)
Max.table safety load	Kg	350	350
Net weight	Kg	1380	1550
Machine size	Mm	1750x1530x2340	1750x1650x2340
