Basic Info.
Application
Wood Saw Machine, Wood Router, Wood Drilling Machine, Cutting Weneer Board, Plywood, Hardwood, Aluminium
Carbon Content
Low Carbon
Density
14.85 - 15.15 G/Cm³
Specification
as model required
Production Capacity
100ton
Packaging & Delivery
Package Size
5.00cm * 10.00cm * 15.00cm
Package Gross Weight
1.000kg
Product Description

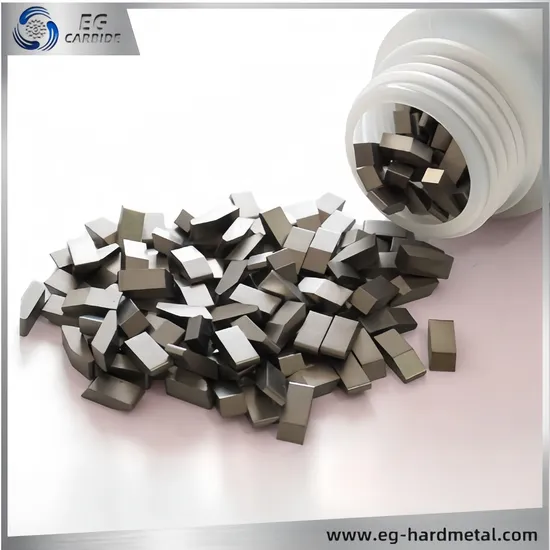

Application of Tungsten carbide tips/carbide saw tips/circular saw tips
Tungsten carbide saw tip is used as the tips for the TCT saw blade for cutting all kinds of original wood, hard wood, HDF, MDF, plywood, particle board, laminated board, composite material, grass, aluminum and metals. It can give much more excellent performance than HSS .
Product Description
| PRODUCT NAME | Carbide saw tips used for cutting HDF |
| MATERIAL | Co+WC 100%Virgin Raw Materials |
| COLOR | Nickel white/Black/Gray |
| STANDARD | DIN GB ISO JIS BA ANSI |
| USED | Brazed on the wood-working saw blade for cutting HDF |
About Tungsten Carbide
1.Using over high purity tungsten carbide powder, it has a better strength and hardness combined with a longer service life than the normal one.
2.Taking isostatic pressing machine, our drill button has a uniform density and do not break easily.
3.Sintered by HIP sintering fuenance, the abrasive resistancing of carbide button can be increased by 24%.
4.Ground by centerless grinder, it has precis measurement up to 0.01mm.
Emented carbide saw tips performance and its use recommendation
1.cemented carbide cutting saw blade used for harcwocd,iecycled wood and aluminum alloy.
2.cemented carbide cutting saws for plywood,density plates and sandwich plates.
3.carbide cutting saw suitable for steel.
Grade |
Physical and
mechanical properties |
ISO Code |
Applications
recommended |
Proposal for welding |
Density
g/cnV |
Hardness
HRA(HV |
TRS Mpa |
| YG6 | 14.6-15.0 | ≥90.0 | ≥1800 | K20 | For the cutting of ordinary wood | use resistance welding
the remperature should be not too high |
| VG8 | 14.6-14.9 | ≥89.5 | ≥1900 | K30 | For the cutting of ordinary wood,also for aluminum | use resistance welding
the remperature should be not too high |
| JX20 | 14.4-14.7 | ≥90.0 | ≥2000 | K20 | For the cutting of ordinary wood | use resistance welding
the remperature should be not too high |
| JX25 | 14.3-14.6 | ≥89.5 | ≥2100 | K30 | For the cutting of ordinary wood,also for aluminum | use resistance welding
the remperature should be not too high |
| JX5 | 14.6-15.0 | ≥90.5 | ≥1900 | K10 | Applies to the cutting of hard wood,recycling wood and aluminum | use resistance welding
the remperature should be not too high |
| JX9 | 14.5-14.9 | ≥90.5 | ≥2000 | K10 |
Applies to the cutting of aluminumopperand lesd.non-ferrous | recommend the high-frequency welding |
| YG6X | 14.7-15.0 | ≥92 | ≥1800 | K10 | Applies to the cutting of the timber |
recommend the high-frequency welding |
| JX05 | 14.8-15.1 | ≥93.3 | &2500 | K05 |
Applies to the cutting of hard Wood,
also can be used for The cutting of
soft metal | recommend the high-frequency welding |
| JX15 | 14.6-15.0 | ≥92.5 | ≥2400 | K05 |
Applies to the cutting of mardwood and aluminum | recommend the high-frequency welding |
| JX35 | 14.9-15.2 | ≥93.5 | ≥2000 | K01 | ,
Apply to the cutting of plywood, mdf board and sandwich board | recommend the high-frequency welding |
| JX40 | 12.8-13.2 | ≥90.5 | ≥2000 | P40 |
Apply to the cutting of steel | recommend the high-frequency welding |
Detailed Photos
Product Parameters
Saw tips-European styleSaw tips-European style
| LXWXT(mm) |
a° |
r° |
B |
| L | W | T° |
| 7.5 | 2.52.83.03.23.43.63.84.04.24.44.55.26.0 | 2.5 | 28 | 70 | 5 |
| 7.5 | 2.83.23.53.74.55.05.66.06.5 | 2.4 | 30 | 50 | 0 |
| 8.0 | 2.42.82.93.03.13.23.33.13.53.63.83.94.0 | 2.3 | 28 | 70 | 5 |
| 8.0 | 4.34.44.54.85.05.25.56.06.88.0 | 2.5 | 28 | 70 | 5 |
| 8.0 | 2.83.03.33.53.84.14.24.65.05.25.510.0 | 3 | 25 | 45 | 0 |
| 8.5 | 2.83.03.33.43.53.63.84.14.24.34.65.06.0 | 2.5 | 28 | 70 | 5 |
| 9.0 | 3.64.34.55.25.5 | 2.7 | 28 | 45 | 5 |
| 9.0 | 3.13.33.53.63.84.34.54.75.25.52.86.0 | 2.7 | 28 | 70 | 5 |
| 10.0 | 3.43.54.36.5 | 2.5 | 20 | 68 | 0 |
| 10.0 | 3.53.73.94.04.34.54.75.05.56.0 | 2.8 | 28 | 70 | 5 |
| LXWXT(mm) |
a |
r |
B |
| L | W | T° |
| 10.0 | 6.57.07.510.0 | 2.8 | 28 | 70 | 5 |
| 10.0 | 3.53.84.34.54.74.85.05.35.45.56 | 3 | 15 | 72 | 0 |
| 10.5 | 3.03.53.87.0 | 2.3 | 28 | 70 | 5 |
| 10.5 | 3.03.33.43.53.63.84.04.14.34.4 | 2.5 | 28 | 70 | 5 |
| 10.5 | 4.54.65.25.56.5 | 2.5 | 28 | 70 | 5 |
| 10.5 | 3.03.43.53.63.84.14.34.54.64.7 | 3 | 28 | 70 | 5 |
| 10.5 | 4.85.05.35.55.66.06.57.07.514.5 | 3 | 28 | 70 | 5 |
| 10.5 | 3.53.94.04.24.34.44.54.64.74.8 | 3.5 | 28 | 70 | 5 |
| 10.5 | 5.05.35.55.86.06.57.08.08.59.010.5 | 3.5 | 28 | 70 | 5 |
| 10.5 | 3.53.94.04.14.34.54.74.84.95.1 | 3.5 | 39 | 59 | 5 |
| 10.5 | 5.56.56.57.09.0 | 3.5 | 39 | 59 | 5 |
| 10.5 | 4.14.85.05.56.06.57.58.59.511.0 | 3.5 | 30 | 75 | 0 |
| 12.0 | 4.54.64.75.15.55.86.06.36.57.0 | 3.5 | 30 | 45 | 10 |
| 12.0 | 8.08.51012.517.0 | 3.5 | 30 | 45 | 10 |
| LXWXT(mm) |
α° |
r° |
B° |
| L | W | T° |
| 12.5 | 4.04.54.85.05.45.55.96.26.36.57.07.510.1 | 3.0 | 28 | 70 | 5 |
| 12.5 | 4.85.25.35.46.06.36.56.87.07.5 | 3.5 | 28 | 70 | 5 |
| 12.5 | 4.55.05.56.06.36.56.87.07.58.09.512.5 | 4.0 | 30 | 70 | 5 |
| 13.0 | 4.04.34.55.05.25.55.86.06.36.5 | 4.0 | 30 | 45 | 5 |
| 13.0 | 7.07.58.08.28.59.010.011.013.0 | 4.0 | 30 | 45 | 5 |
| 13.0 | 4.44.84.95.25.45.75.86.06.36.5 | 4.0 | 30 | 60 | 5 |
| 13.0 | 6.77.07.58.510.0 | 4.0 | 30 | 60 | 5 |
| 13.0 | 4.04.54.84.95.05.35.56.06.56.8 | 4.0 | 40 | 60 | 3 |
| 13.0 | 7.07.58.08.510.0 | 4.0 | 40 | 60 | 3 |
| 13.0 | 5.06.07.08.09.010.012.0 | 5.0 | 35 | 45 | 0 |
| 14.5 | 4.04.55.05.56.06.57.07.58.08.59.0 | 4.0 | 30 | 70 | 0 |
| 14.5 | 10.011.012.012.213.014.014.215.016.0 | 4.0 | 30 | 70 | 0 |
| 14.5 | 16.217.018.019.020.0 | 4.0 | 30 | 70 | 0 |
| 15.5 | 8.09.512.013.0 | 5.0 | 30 | 0 | 0 |
Our Advantages
Features of cemented carbide saw tips blades
1.Production of 0.4 um ultrafine tungsten carbide.
2.The hardness of the product is as high as 93.5.it has good wear resistance.
3.High frequency welding of welding wire.
Inspection
The size of the angle shall not exceed 0.15 mm on the edge of the blade and 0.3 mm on the
non-blade.
The inspection rules and test methods should be in accordance with the provisions of GB 5242
Marking,packing,transportation and storage
Requirements for surface quality of cemented carbide saw tips blades
Cemented saw tips blade surface must not be delamination,cracks and bubbles,obvious
carburization and other defects.
The size of the angle shall not exceed 0.15 mm on the edge of the blade and 0.3 mm on the
non-blade
Package
The saw tips piece every 5Kg in a plastic bag,cardboard boxes in a dry,with scraps of paper or
cotton plugged in,carton box,or plastic box,placed in a corrugated box.Weight per box shall not
exceed 30Kg.
Each box should be sticked to the factory label,indicating the product brand,model,batch number
and net weight.
When the product is transported,the moisture should be prevented and the collision should not be
violently.
The product should be stored in dry,acid free,alkali atmosphere and corrosion protection.The
product should not be stored for more than one year,and the product discoloration should be
retreated and reused one year later.
>>
