Portable Gas Detector Iecex IP68 Data Storage Wireless Transmission Lel, Co, O2, H2s Detector for Industrial Use

Product Description

Safegas Portable Multi Gas Detector Light Weight IECEX certificated IP68 drop resistant Diffusion Suction With Back Clip
Product Overview
MicMeta is a multi-gas detector with IP66/IP68 protection, under normal circumstances, Micmeta can detect 1-4 gases at the same time. In the case of two conventional range gases, CO and H2S, it can detect up to 5 gases at the same time.
Micmeta has obtained three explosion-proof certifications: IECEX, ATEX, and China Explosion-proof. The explosion-proof level is Ex ia IICT4 Ga/Ex ia I Ma, and it can be used in Zone 0 and Zone 1 at the same time.
Micmeta uses an LCD screen, and the display interface supports switching between Chinese and English, and the gas unit can be switched. Two-level sound and light alarm, the alarm point can be set by yourself, optional PC software to download the detected data. Optional docking station to realize easy bump testing, calibration, configuration and data recording.

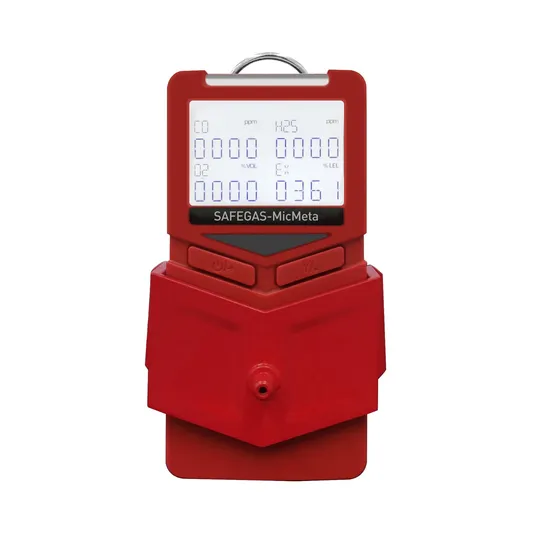

Product Pictures
Product specification

Sampling method	Diffusion suction
Gas type	CO, H2S, O2, LEL, CO2
Measure range	CO 0-1000PPM, H2S 0-100PPM, O2 0-30%VOL, LEL 0-100%LEL
Resolution	CO 1PPM, H2S 0.1PPM, LEL 1%LEL, O2 0.1%VOL
Response time	≤60S (T90)
Precision	≤±5%FS or ±10% (depends on the specific sensor
Language	Chinese/English
Automatically test and calibrate after power-on	Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit	PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system
Disaply	Segment code LCD display
Calibration platform	Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional)
Data record	1000 sets data records and 100 sets events records
Alarm	95dB buzzer (@30cm), vibration alarm and flashing red bar, as well as on-screen alarm status indication, alarm lock; Diagnostic alarms and battery undervoltage alarms, man down alarms, all sensor alarm value is settable.
Battery	3.7V rechargeable lithium battery, battery capacity 2300mA
Working hours	Standby time 18h, charging time <6h
Wireless transmission	Bluetooth transmission function (optional), Lora transmission function (optional)
Explosion-proof grade	IECEx: Ex ia IIC T4 Ga, Ex ia I Ma, ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma
(EU regulations)	2004/108/EC(EMC), 94/9/EC(ATEX), CE
Protection grade	IP66/IP68
Working temperature	-20°C~55°C
Humidity	0-95%RH (non-condensing)
Environmental pressure	86~106Kpa
Size	113*60*32mm (length * width * height)
Weight	200g (with lithium battery)

Gas
Micmeta can detect 1-5 gases, here's some gases Micmeta can detect:
Product Application
Chemical Industry
Environmental Monitoring
Healthcare Applications
Automotive Industry
Industrial Safety
Wastewater Treatment
Greenhouse Gas Monitoring
Oil and Gas Exploration
Food and Beverage Production
Mining and Mining Operations
Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Product line
Our products contain portable types, fixed types and controller panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.
Company we cooperated
Huawei, Cocacola, Samsung, Nestel and so on.
FAQs
Q1: What is a gas detector?
A1: Gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, fixed gas detector, etc.
Q2: What does a gas detector detect?
A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3: What is the ppm unit of the gas detector?
A3: ppm represents the volume concentration of the gas, that is, the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.

---
