Duoling Portable Screening and Plants Crushing for Mining / Ore

Product Description

Duoling Portable Screening and Plants Crushing for Mining / Ore
Introduction of Duoling Mobile stone Crusher Designed and manufactured with patented and most advanced technology, Duoling Series Mobile Crushing Plant has reached the world advanced level.

Specifications of Duoling Mobile Crusher

DL	DuoLing
J	Jaw Crusher
C	Cone Crusher
S	Screening
F	Feeder
I	Impact Crusher
V	Vertical Shaft Impact Crusher
600	Daily output 600 T ( 8 working- hours everyday)
1000	Daily output 1000 T ( 8 working- hours everyday)
2000	Daily output ~2000 T ( 8 working- hours everyday)

Series	Model	Equipment	Feed Opening (mm)	CSS (mm)	Working Area (mm)	Deck	Max.Feed (mm)	Capacity (t/h)	Dimensions		Weight (t)
									Work	Transport
DL-600	DL-J600	J-600	500*750	50-120	-	-	425	50-150	9070(L) 3440(W) 4725(H)	9070(L) 3015(W) 4225(H)	25
		F-600	-	-	3700*900	-	450	200
		Frame	Semi-trailer, single shaft dual wheel, mechanical support, suspension, brake
			Max.speed:30KM/H (smooth road)
	DL-I/S600	I-600	540*1170	20-40	-	-	350	70-120	15125(L) 4345(W) 5995(H)	14870(L) 3445(W) 4335(H)	37
		S-600	-	-	4280*1350	3	120	70-140
		Frame	Semi-trailer, double shaft dual wheel, mechanical support, suspension, brake
			Max.speed:30KM/H (smooth road)
DL-1000	DL-J1000	J-1000	600*900	75-180	-	-	500	65-190	9750(L) 3845(W) 4645(H)	10010(L) 3100(W) 4200(H)	33.5
		F-1000	-	-	3700*1050	-	500	300
		Frame	Semi-trailer, double shaft dual wheel, mechanical support, suspension, brake
			Max.speed:30KM/H (smooth road)
	DL-I/S1000	I-1000	490*1520	20-40	-	-	350	100-160	14820(L) 7455(W) 5520(H)	14300(L) 4330/4755(W) 4160/4335(H)	48
		S-1000	-	-	3700*900	3	120	80-230
		Frame	Semi-trailer, triple shaft dual wheel, mechanical support, suspension, brake
			Max.speed:30KM/H (smooth road)
	DL-C/S1000	C-1000	54*190	6-38	-	-	43-152	55-245	14685/14840(L) 4125/7455(W) 5730/5713(H)	13640/13870(L) 3890/4330(W) 4330/4320(H)	41/42
		S-1000	-	-	4880*1600	2/3	120	80-230
		Frame	Semi-trailer, triple shaft dual wheel, mechanical support, suspension, brake
			Max.speed:30KM/H (smooth road)
DL-2000	DL-J2000	J-2000	800*1100	90-220	-	-	650	140-320	11830(L) 5000(W) 5365(H)	12445(L) 3380(W) 4350(H)	58.5
		F-2000	-	-	4300*1220	-	650	400
		Frame	Semi-trailer, triple shaft dual wheel, mechanical support, suspension, brake
			Max.speed:30KM/H (smooth road)
	DL-C2000	C-2000	25-230	6-45	-	-	20-184	80-440	9700(L) 3600(W) 4830(H)	9700(L) 3600(W) 4230(H)	32.5
		Frame	Semi-trailer, double shaft dual wheel, mechanical support, suspension, brake
			Max.speed:30KM/H (smooth road)
	DL-S2000	S-2000	-	-	4880*1562	3	200	200-525	10210(L) 3550(W) 4285(H)	8750(L) 3550(W) 4200(H)	18.5
		Frame	Semi-trailer, single shaft dual wheel, mechanical support, suspension, brake
			Max.speed:30KM/H (smooth road)

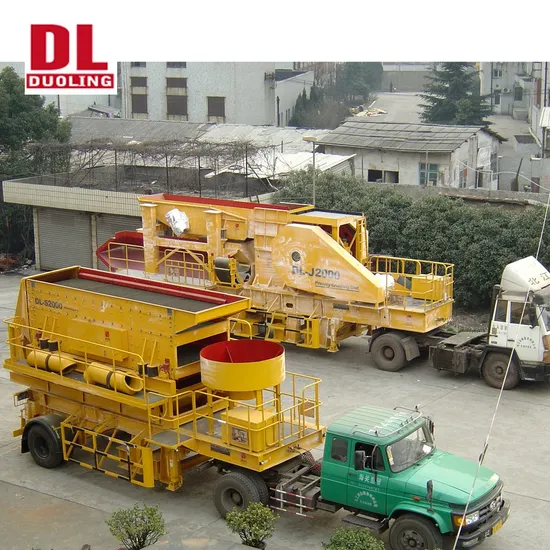

Delivery of Duoling Mobile Crusher
Our 2018 Bauma exhibition
Our Workshop

---
