China Produced Mk1332 CNC Grinding Machinery

Product Description

Product Description

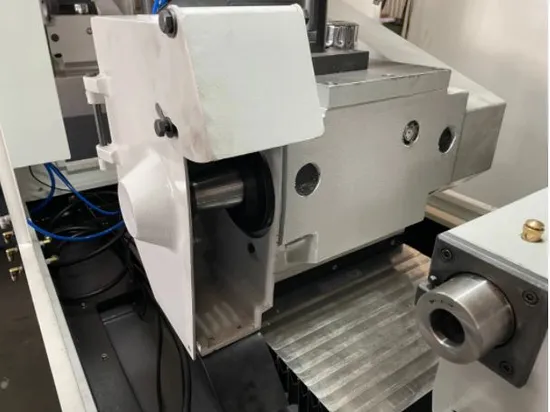

MK1332 CNC Grinding Machine
CNC grinding machines are machine tools that use a rotating grinding wheel to achieve material removal on a metallic workpiece by means of cutting. Grinding machines are mostly used for the hard-fine machining of workpieces (parts). The surface quality which can be achieved is very high, and grinding machines thus almost always find application in modern industry as a finishing process. Furthermore, The control of all movements and machining processes within the CNC grinding machine is computer-aided and runs fully automatically, the CNC system takes on all control tasks with respect to part machining. These tasks include the sequence of machining steps or the finished part dimensions that need to be achieved. Through the use of CAM tools (Computer-Aided Manufacturing), the CNC system can be supplied immediately with the design data needed for carrying out part machining.
Feature
1. The machine tool adopts the GSK 986GS control system(can also choose Siemens or Fanuc ) and a large-screen LCD display. After the user fills in the relevant grinding parameters, it can realize the automatic grinding work cycle to ensure the machining dimensional accuracy. The feed of the external grinding wheel and the movement of the worktable is driven by an AC servo motor through a ball screw. The grinding wheel feed adopts cross-steel guide rails to ensure the precision, sensitivity, and rigidity of the machine tool when it moves.
2. The headstock motor adopts a domestic high-quality motor and is equipped with a frequency converter to realize step-less speed regulation.
3. The tailstock sleeve has a hydraulic telescopic function.
4. The machine is equipped with automatic timing and quantitative lubrication to ensure the lubrication of guide rails and screw rods. The machine tool is equipped with a full protective cover to ensure safe operation.
5. The machine tool cover is semi-protected, with an independent electrical cabinet and an independent cooling water tank device.

Product Parameters

specifications	Unit	MK1332
Max.length grinding(O.D)	mm	1000/1500
center height	mm	180
Dia. grinding(O.D)	mm	8~320
Max. weight of workpiece	kg	150
Work-head
center taper	MT	4
spindle speed(stepless)	r/min	50HZ 26-190
Wheel-head
Max.dimension of wheel(O.D*W*ID)	mm	600*75*305
wheel peripheral velocity	m/s	35
Min. set Unit	mm	0.0001
worktable
Max. the swiveling angle of worktable clockwise	degree	3
Max. the swiveling angle of worktable anticlockwise	degree	7/6
Tail-stock
center taper	MT	4
Quill travel	mm	30
electrical system
CNC system	HNC808DG/Siemens 808D/Fanuc 0I
wheel head motor power	KW	11
Work-head motor power	KW	1.5
machining accuracy
Roundness	μm	3
Cylindrical	μm	8
Roughness	μm	Ra0.2
Machine weight	t	4.6/5.1
Package size	cm	426*225*220(1000)
		545*225*2220(1500)

Packaging & Shipping
Company Profile
Weifang Runlian Economic and Trade Co., Ltd. was established in 2011, Is a professional domestic high-end machine tool equipment And accessories import and export enterprise, Including metal cutting machines, metal cutting machine tools, Grinding machines, Grinding tools, Measuring Tool, Machine function parts, numerical control devices (CNC), Metal forming machine, Lubricating grease and mechanical processing technology consulting business, adhering to the core value of "customer satisfaction is our purpose", With the core cultural concept of "team, responsibility, communication, tolerance", Take advantage of nearly 20 years of industry experience to provide global customers with the most suitable industry products to create the greatest value, to become a world-class industrial service provider. FAQ
1. Are you a factory or a Trade Company?
We are Industry and trade integration.
2. Is your company accept customization?
Yes, we can undertake to customize and process, including non-standard products.
3. Could you produce non-standard products?
Yes, we could make it according to your request.
4. What is the Payment Term?
FOB, CFR, and CIF are all acceptable.
5. What are the shipping ways?
By international express, by air, by sea are all ok.

---
