Product Details
Product Description
Product Description
1. Paramete
Second, the main purpose:

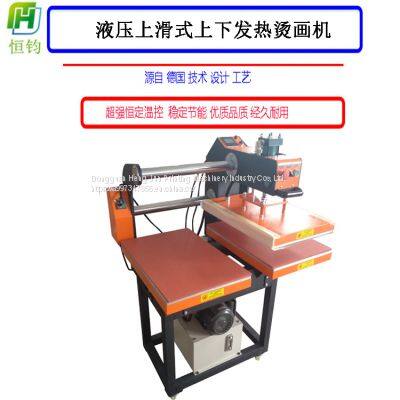

The hydraulic double-station heat transfer machine can transfer the color patterns and characters of sublimation and solvent inks to cotton, linen, chemical fiber, nylon and other fabrics and ceramic products by heat transfer, and can also perform hair flocking heat transfer and foam printing processes. etc., as well as the bonding of low temperature and low pressure lining and fabrics of clothing, such as clothing, shoes and hats, etc. It can also be used to produce small batches of handkerchiefs
3. Product Features:
Electronic digital display constant temperature control temperature, high accuracy, (±2℃);
The heating adopts the principle of imported aluminum alloy casting heat conduction, which saves electricity, has uniform temperature and small temperature difference coefficient;
Electronic digital time control, high accuracy and beautiful appearance;
Pressure can be adjusted at will
4. Operation steps
1. Connect the compressor connector, open the air pressure, adjust the pressure regulator 6 to (4pB-6pB), and make the heating plate rise;
2. Connect the compressor connector, open the air pressure, adjust the pressure gauge (4pB-6pB), and make the heating plate rise;
3. Turn on the power supply, turn on the main power switch, and the indicator light will light up immediately.
4. Adjust the time and temperature required. (See page *** for details.)
5. After adjusting the temperature and time, wait for the machine to heat up
6. After the temperature is completed, the thermometer will light up a small green light.
7. Put the clothes on the silicone pad, then put the heat transfer paper, (pay attention to the front and back of the heat transfer paper) push the table to the hot pressing position, press the 9 start switch, flatten the items, put in the heat transfer paper, and then press Put on the high temperature cloth, press the start switch, the hot stamping starts, and the time counts down.
8. After completion, the heating plate will automatically rise and the work surface will be pulled out.
9. The hot items. If it is cold torn heat transfer paper, please wait 5-10 seconds before tearing off the heat transfer paper. If it is hot torn heat transfer paper, please tear off the heat transfer paper immediately after hot stamping.
10. After successful trial printing, you can turn button 1 right to semi-automatic gear. After placing the hot stamping item, just move the handle 7 to the top of the hot stamping item, and the hot stamping will start automatically. In case of emergency, you can press button 6 for emergency stop, and the hot stamping can continue after the emergency stop button is reset.
Six, maintenance matters:
1. Pressure: If it is not uniform enough, first use a ruler to measure whether the distance between the four sides of the heating plate and the four sides of the bottom plate is consistent. Tighten the heating plate to lower it. If the pressure is too high or too low (usually 4KG-6KG), adjust the regulating valve on the filter to the "+" direction, increase the pressure, "-" reduce the pressure, or check whether the air compressor pressure is normal (usually The air compressor pressure is 6KG-8KG).
2. Time: When the bottom plate is in place, the time is not displayed, then check the proximity switch to see if the distance is moderate, it should be adjusted to less than 4 mm, when the time is up, the heating plate does not come down, check the circuit.
3. Temperature: adjust to the set temperature, do not heat up, do not control the temperature, check whether the temperature control meter, contactor, and heating plate circuit are in good contact and the electrical components are faulty.
Notice:
The whole machine must have a suitable and reliable protective ground wire
Successful hot stamping requires the correct time, temperature and pressure. The thickness and material of clothes and various types of heat transfer paper will affect the effect of hot stamping. Mass production.
The temperature and time required for hot stamping are as follows:
Cotton clothes: 180-220 degrees, 25 seconds
Polyester clothing: 180 degrees, 15 seconds
Pearlescent plate: 180 degrees, 120--180 seconds
Metal pendant: 180 degrees, 60 seconds
Mouse pad: 180 degrees, 15 seconds
Porcelain plate: 200 degrees, 180 seconds
Keychain: 180 degrees, 100 seconds
Ceramic: 180-220 degrees, 180 seconds
Set temperature and time
1: Temperature setting: Press the SET button once, the upper row of numbers will appear 5P, the lower row of numbers will flash, then enter the temperature setting state, press the plus key ▲ minus key? to set the temperature, and then press and hold SET after setting key for 2 seconds to confirm.
2: Time setting: Press the SET button twice, the upper row of numbers will appear 5E, and the lower row of numbers will flash, then enter the temperature setting state, press the plus key ▲ minus key ? to set the temperature, and then press and hold after setting SET key for 2 seconds to confirm.
>>
