ADSS Fiber Cable (TMSMADSS-PE) Optic Fiber Cable

Product Description

P/N: TMSMADSS

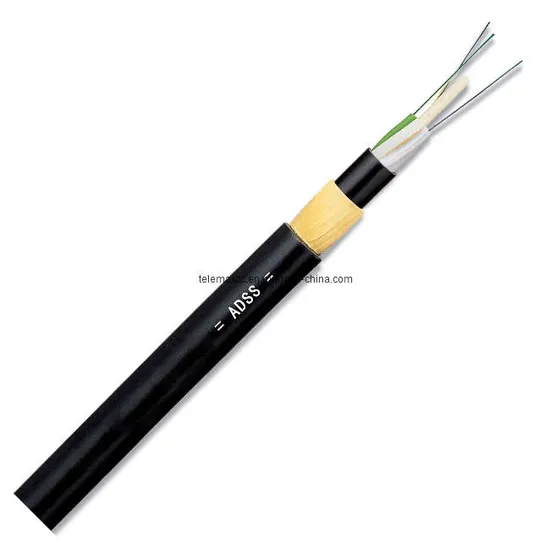

Description: All Dielectric Self Supporting 12 CORE Single Mode (ADSS) Optical Fibre Cable
TeleMax ADSS cable is loose tube stranded. Fibres are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers)are stranded around FRP(Fibre Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with a thin polyethylene (PE) inner sheath. After two layers of Aramid yarns are applied in two directions over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Note:
1. The colour arrangement of optical fiber is specified in the fiber colour code
2. S: Short term; L: Long term; L. T: Loose tube
3. Crush load: N/100mm; D: Cable diameter

---
