New leakage circuit breaker
Ew32 type ew63 type ew125 type ew160 type ew250 type ew400 type ew630 type
EW800 type
Ew50 type ew100 type
Ew32 and ew50 (standard products)
Basic models: ew32aag-2p, ew32aag-3p, ew32eag-3p
Rated current a (code): 5 (005), 10 (010), 15 (015), 20 (020), 32 (032)
Reaction current MA (code): 15 (a), 30 (b), 100 (c)
Basic models: ew50aag-2p, ew50aag-3p, ew50eag-3p
Rated current a (code): 5 (005) 10 (010) 15 (015) 20 (020) 32 (032) 40 (040) 50
(050)
Reaction current MA (code): 15 (a), 30 (b), 100 (c)
Note: ew50eag-3p reaction current MA (code): 15 (a) 30 (b) 100 / 200 switching
(k)
Basic model: ew32sag-3p
Rated current a (code): 3 (003) 5 (005) 10 (010) 15 (015) 20 (020) 32 (032)
Basic model: ew50sag-3p
Rated current a (code): 5 (005) 10 (010) 15 (015) 20 (020) 32 (032) 40 (040) 50
(050)
Basic model: ew50rag-3p
Rated current a (code): 10 (010) 15 (015) 20 (020) 32 (032) 40 (040) 50 (050)
Reaction current MA (code): 30 (b), 100 / 200 / 500 switching (k)
Ew63 and ew100 (standard products)
Basic model: ew63eag-3p
Rated current a (code): 63 (063)
Sensitivity current MA (code): 15 (a) 30 (b) 100 / 200 switching (k)
Basic model: ew63sag-3p, ew63rag-3p
Rated current a (code): 63 (063)
Sensitivity current MA (code): 30 (b), 100 / 200 / 500 switching (k)
Basic model: ew100aag-3p
Rated current a (code): 63 (063) 75 (075) 100 (100)
Sensitivity current MA (code): 30 (b) 100 / 200 switching (k)

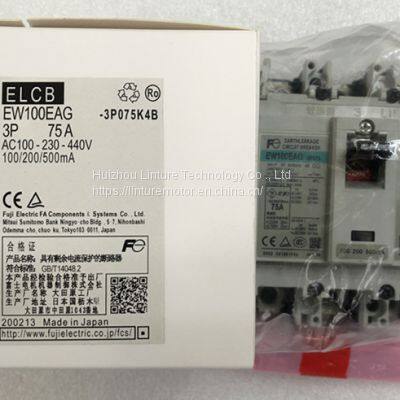

Basic model: ew100eag-2p
Rated current a (code): 50 (050) 63 (063) 75 (075) 100 (100)
Sensitivity current MA (code): 30 (b), 100 / 200 switching (k)
Basic model: ew100eag-3p
Rated current a (code): 50 (050) 63 (063) 75 (075) 100 (100)
Sensitivity current MA (code): 30 (b), 100 / 200 / 500 switching (k)
Ew125 (standard product)
Basic models: ew125jagc-3p, ew125jagc-4p, ew125sagc-3p, ew125sagc-4p,
ew125ragc-3p, ew125ragc-4p
Rated current a (code): 15 (015) 20 (020) 32 (032) 40 (040) 50 (050) 63 (063)
75 (075) 100 (100) 125 (125)
Reaction current MA (Code: 30 (b), 100 / 300 / 500 / 1000 switching (k)
Ew160 (standard product)
Basic models: ew160eagc-3p, ew160jagc-3p, ew160jagc-4p, ew160sagc-3p,
ew160sagc-4p, ew160ragc-
3P,EW160RAGC-4P
Rated current a (code): 125 (125) 150 (150) 160 (160)
Reaction current MA (Code: 30 (b), 100 / 300 / 500 / 1000 switching (J)
Ew250 (standard product)
Basic models: ew250eagc-3p, ew250jagc-3p, ew250sagc-3p, ew250ragc-3p
Rated current a (code): 175 (175) 200 (200) 225 (225) 250 (250)
Reaction current MA (Code: 30 (b), 100 / 300 / 500 / 1000 switching (J)
Basic models: ew250jagc-4p, ew250sagc-4p, ew250ragc-4p
Rated current a (code): 175 (175) 200 (200) 225 (225)
Reaction current MA (Code: 30 (b), 100 / 300 / 500 / 1000 switching (J)
Ew400 (standard product)
Basic models: ew400eagc-3p, ew400sagc-3p, ew400ragc-3p, ew400ragc-4p,
ew400hagc-3p, ew400hagc-4p
Rated current a (code): 250 (250) 300 (300) 350 (350) 400 (400)
Reaction current MA (Code: 30 (b), 100 / 300 / 500 / 1000 switching (J)
Ew600 (standard product)
Basic models: ew630eagc-3p, ew630ragc-3p, ew630hagc-3p
Rated current a (code): 500 (500), 630 (630)
Reaction current MA (Code: 100 / 300 / 500 / 1000 switching (J)
EW800 (standard product)
Basic models: ew800eagc-3p, ew800ragc-3p, ew800hagc-3p
Rated current a (code): 700 (700) 800 (800)
Reaction current MA (Code: 100 / 300 / 500 / 1000 switching (J)
