| US$30.00-40.00 | 1 Set (MOQ) |

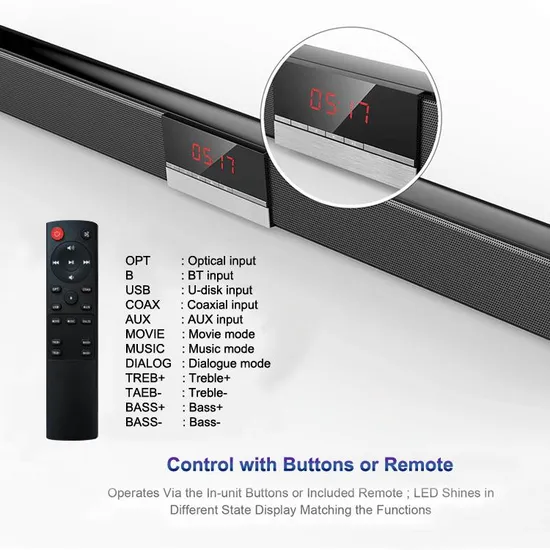

| Front and back panel photos: | 1) 2.0 channel output 2) 1 channel 3.5mm AUX input 3) 1 Channel Optical Fiber (PCM) Signal Input 4) 1-way coaxial (PCM) signal input 5) T5.0 Bluetooth Audio Input 6) TF card MP3/WMA/APE playback 7) LED light display 8) 4 speaker units 9) Black PVC Shell 10) Two passive basins 11) DSP Audio, adding three new audio modes, including movie mode, music mode, news 12) Upgrade QE adjustment function, according to user preferences alone adjust the addition or ubtraction of treble or bass, the highest (+5dB) | |||
| General Information | Model | MR100 | ||
| Description | 2.0CH SOUNDBAR | |||
Specification | Electrical Performance and Indicators | Product Name | SOUNDBAR | |
| Channel | 2CH | |||
| Out Power | 20W*2 RMS | |||
| FREQUENCY RESPONSE | 50Hz-18KHz | |||
| S/N | 83dB | |||
| THD+N | ≤0.3% | |||
| AUX Input Sensitivity | 400mV | |||
| Power amplifier | CLSS-D | |||
| Supply voltage | DC15V/2A | |||
| Coaxial decoding | 2.0CH PCM | |||
| Optical decoding | 2.0CH PCM | |||
| Driver Unit specification and produt size | SPEAKER | Full-frequency | ||
| SPEAKER SIZE | 2"(52mm) | |||
| IMPEDANCE | 4Ω | |||
| SPEAKER POWER | 15W*4 | |||
| Number of speakers | 4PCS | |||
| Passive Radiators-PRs | Passive Radiators-PRs | 2PCS | ||
| Passive Radiators-PRs SIZE | 50*120mm | |||
Cable | Extra Function | Bluetooth version | 5.0+EDR | |
| Remote Controller | YES | |||
| USB Port | YES | |||
| Shell structure and material | Shell structure and material | Black highlight of PVC | ||
| Cavity structure | Closed type | |||
| Cable | Power adapter | 15V/2A | ||
| Audio line | 3.5 mm to 3.5 mm stereo, 1.5M in length | |||
| Size/Weight | Size/Weight | Product Size (MM) | 880*62*55 | |
| Product Net Weight (KG) | 1.75 | |||
| Inner Packing Size (MM) | 985*85*100 | |||
| Weight(KG) | 1.92 | |||
| Outer Packing Size(MM) | 994*264*310 | |||
| Weight(KG) | 18.6 | |||
| PCS/Carton (PCS) | 9 | |||
