Fan Blade Making Machine Good Price Injection Molding Machinery

Product Description

High Speed Plastic Tableware Disposable Knife Fork Spoon Injection Molding Machine
Product Parameters

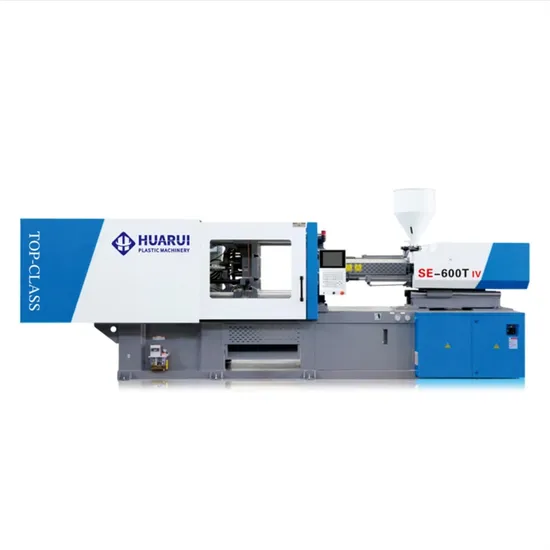

SE-600T IV Plastic Injection Molding Machine Information
Item		Unit		A	B		C	D
Screw diameter		mm		85	90		95	100
Theoretical shot volume		cm³		2554	2863		3190	3534
Shot weight (PS)		g		2324	2605		2903	3216
Shot weight (PS)		oz		82	91.9		102.4	113.4
Length/Diameter ratio		L/D		23.3	22		20.8	19.8
Injection pressure		Bar		1909	1700		1530	1380
Injection rate		cm³/sec		653	732		816	904
Max.screw speed		rpm		140
Clamping force		KN		6000
Max.daylight		mm		1350*1300
Open stroke		mm		900
Space Between Tie-bars		mm		920*870
Min mould dimension		mm		400
Mould thickness range		mm		920
Ejector force		KN		160
Ejector stroke		mm		230
No.of ejector pins		unit		17
Max.motor power		KW		36+36
System pressure		MPa		175
Heater input power		KW		52
Oil filling capacity		L		700
Machine size		M		9.8*2.2*3.0
Net weight		KG		26900

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
