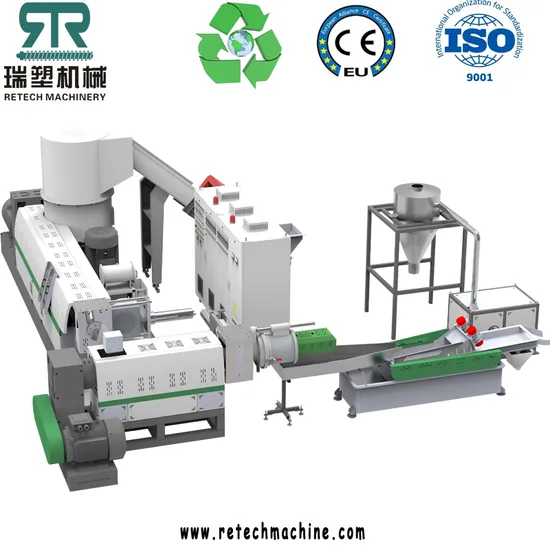

Easy Operation Plastic HDPE LDPE Granulator for Polyethylene Polypropylene Plastic Pellets Making Recycling Line

Product Description

Easy Operating Plastic HDPE Granulator for Polyethylene Polypropylene Plastic Pellets Recycling Line
Product Description
Easy Operating Plastic HDPE Granulator for Polyethylene Polypropylene Plastic Pellets Recycling Plant:
1.Waste Plastic LDPE BOPP film / bags after washing recycling ,we can use this machine to making plastic granules.New granules After Blow molding or Injection ,it can be used to making new plastic product.Such as plastic film,plastic bags,plastic bottle,plastic pallet,plastic box,plastic barrel etc.2.This PP PE film pelletizing machine is suit for PP/PE/LDPE/HDPE/BOPP Film & Woven Bag and other plastic.3.We supply single stage or double stage (Mother and baby type).
Detailed Photos
Product Parameters

Model	Diameter of screw	PE capacity	PP capacity
TCDJ-85	Φ85mm	150-200kg/h	100-150kg/h
TCSJ-85/85	Φ85/85mm	150-200kg/h	100-150kg/h
TCDJ-100	Φ100mm	280-350kg/h	250-300kg/h
TCSJ-100/100	Φ100/100mm	280-350kg/h	250-300kg/h
TCDJ-130	Φ130mm	480-550kg/h	400-500kg/h
TCSJ-130/130	Φ130/130mm	480-550kg/h	400-500kg/h
TCDJ-160	Φ160mm	650-800kg/h	600-750kg/h
TCSJ-160/160	Φ160/160mm	650-800kg/h	600-750kg/h
TCDJ-180	Φ180mm	800-1200kg/h	750-1000kg/h
TCSJ-180/180	Φ180/180mm	800-1200kg/h	750-1000kg/h

Certifications
Packaging & Shipping
Exhibition

Features
Easy Operating Plastic HDPE Granulator for Polyethylene Polypropylene Plastic Pellets Recycling Machinery:
1. Feeding way of plastic pelletizing recycling machine: Special designed force feeder, side feeder and compactor can push the material into the extruder high efficiently. Guarantee getting good capacity of the machine
2. Gear reducer of plastic pelletizing recycling line: The high torque, hard-surface gear reducer with water cooling circulation system ensures the line running steady, silent, a
nd long life.
3. Barrel and screw of plastic pelletizing recycling equipment: The special material (38CrMoA1A & double alloy) and hardness treatment of the screw and barrel make extruder to be good wear resistance.
4. Degassing of plastic pelletizing recycling plant: Special design for the venting can discharge the moisture and waste air efficiently which ensure the finally plastic granules are with smooth surface, no water, no bubble, and good quality.
5. Hydraulic filter of plastic pelletizing recycling plant: Double position hydraulic filter works swift and easy to operate. Copper ring prevents the material leakage.
6. Cutting way of plastic pelletizing recycling plant: Two type cutting way, the noodle type and water ring type makes the customer freely to choose.
7. Special designed die of plastic pelletizing recycling plant: All die holes size are special designed due to the material characters and our rich experience to make machines.
8. Cooling way of plastic pelletizing recycling plant: Most of the materials are cooled by water. Some like PVC are cooled by wind. e with smooth surface, no water, no bubble, and good quality.
9. Cutting way of plastic pelletizing recycling plant: pineapple cutter is for the noodle cutting way, and die face cutter for the water ring cutting way.
10. Package of the final products of plastic pelletizing recycling plant: Final products granules will be blowing into silo, which will be packaged by manual or packaging scale machine
11. Electric parts of plastic pelletizing recycling plant: Siemens, Fuji, ABB, Mitsubishi, TECO all electric parts customized.
Solution
