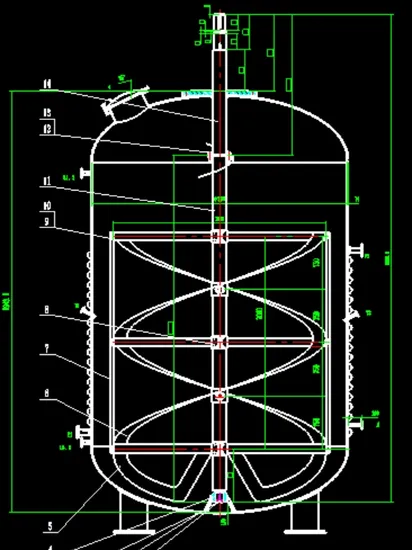

*For confidential reason, the drawing is in low definition. If you have any question, please contact us for more information.
| LUHAO Chemical Machinery Co. Ltd | | | |
| | | |
| Pressure Vessel Design Information Collection Table |
|
| | | Vessel | Jacket (Coil) |
| Work Medium | Name | | |
| Components | | |
| Density (Kg/m³) | | |
| Characteristics | | |
| Viscosity (cP) | | |
| Flow Velocity(m³/h) | | |
| Design pressure (Mpa) | | |
| Work pressure (Mpa) | | |
| Design temperature(ºC) | | |
| Work temperature (ºC) | | |
| Wall temperature (ºC) | | |
| Diamter (mm) | | |
| Length (mm) | | |
| Capacity(m³) | | |
| Effective capacity (m³) | | |
| Corrosion allowance (mm) | | |
| Corrosion speed (mm/year) | | |
| Recommended Materials | | |
| Lowest value of average monthly temperature(ºC) | |
| Site location | |
| Installation condition | Indoor or Outdoor |
| | | | | | |
| Catalyst Volume(m³) | | | |
| Catalyst Density(Kg/m³) | | | |
| Heat Transfer Area(m2) | | | |
| Coil Specification | | | |
| Basic Wind Pressure(Mpa) | | | |
| Seismic Basic Intensity | | | |
| Ambient Temperature(ºC) | | | |
| Site Type | | | |
| Operating Mode | | | |
| Insulation Materials | Name | | | |
| Thickness | | | |
| Density (Kg/m³) | | | |
| Seal Requirements | | | |
| Liquid Level Gauge | | | |
| Emergency Cut-off | | | |
| Static Electricity Removal | | | |
| Anti Eddy Current Requirement for Liquid Outlet | | | |
| Installation and Mantainance Requirements | | | |
| Expected Useful Life (years) | | | |
| | | | | | |
| Safety accessories | | Vessel | Jacket (Coil) |
| Location | | |
| Type | | |
| Specification | | |
| Quantity | | |
| Set pressure(Mpa) | | |
| Burst disc | | |
| Burst pressure(Mpa) | | |
| Safety discharge(kg/h) | | |
| | | | | | |
| Agitator | Type | | | |
| Impeller Diameter(mm) | | | |
| Speed(r/min) | | | |
| Motor | Model | | | |
| Power(kw) | | | |
| Explosion Proof Grade | | | |
| Speed reducer | | | |
