Powder Screen Vibrating Sifter Sieving Machine Centrifugal Airflow Sieve Vibration Separator

Product Description

Product Description

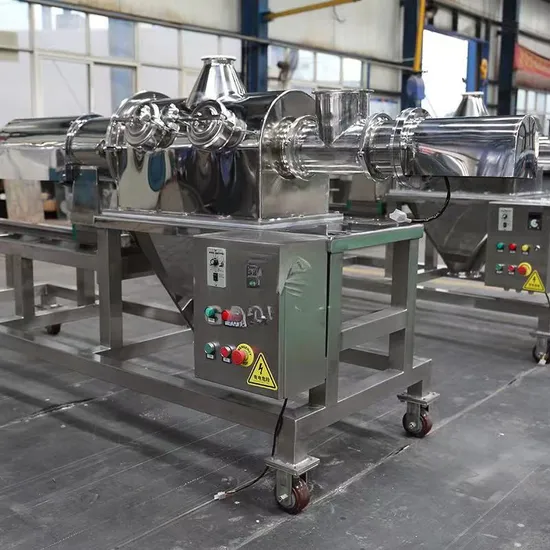

HORIZONTAL AIR FLOW SCREEN
Centrifugal sifter principle is feeding the materials into a screw conveyor and a rotor rotating at high speed,the fine materials will pass through screen,discharged at the end of the screw shaft.lt is especially suitable for super fine powder,light and sticky powder,such as cosmetics,Chinese medicine powder,malt dextrin,mica powder,pigment and so on.
Working Principle:The screen of this equipment is cylindrical and is placed in the machine body. After the material passes through the screw conveying system, it is mixed with the air flow and atomized into the mesh cylinder. The material is subject to centrifugal force and cyclone propulsion force at the same time through the wind wheel blades in the mesh cylinder. , so that the material is sprayed through the mesh, the material passing through the mesh is discharged from the fine material discharge port, and the material that cannot pass through the mesh is discharged from the coarse material discharge port along the cylinder wall, achieving the purpose of efficient separation. Product advantages1. The design principle of the air flow screen is more suitable for screening ultra-light and multi-fiber materials.2. The screen has a long service life. The main reason why the air flow screen is damaged quickly is the equipment structure, the concentricity of the equipment and the processing technology of the mesh cage, which directly affect the service life of the screen.3. The air flow screen is easy to clean and is suitable for screening multiple varieties and small batches to avoid cross-contamination of materials caused by mixing.4. The air flow screen connected in series in the air duct system can withstand a pressure of 0.1MPA. It is suitable for positive pressure systems such as flour and has a large screening output.
Product features1.Positive and negative pressure air duct system
It can be used as a single machine or with multiple machines, and can be connected to positive and negative pressure air duct systems. It can run continuously for a long time and is safe and reliable.
2.Break up function
It has the function of breaking up false agglomerated materials.
3.Automatic network cleaning
The screen mesh is washed by the cyclone and can be automatically cleaned.
4.Gas protection system
The gas protection system reduces maintenance frequency and extends service life.

Model	Processing capacity (kg/h)	Processing accuracy (%)	Applicable mesh size (mesh)	Net cage diameter (mm)	Net cage length (mm)	Network pipe surface area (m²)	Gap between wind wheel blades and screen (mm)	Spindle speed (r/min)	Power (kW)
QLSP18-65	3000	≥85	5~500	180	650	0.36	3~10	815~1110	2.2
QLSP30-100	5000			300	1000	0.94		820~980	4
QLSX30-80	5000			300	800	0.75		820~980	4
QLSS20-65	3500			200	650	0.4		1450	2.2
QLSZ20-65	3500			200	650	0.4		1450	2.2
QLSZ40-90	5000			400	900	1.1		960	5.5
QLSL20-60	30m³/h			200	600	0.37	5~10	960	1.5

Detailed Photos
Applied materialScope of application: battery materials, silicon materials, food industry, pharmaceutical industry, chemical industry, metal, metallurgical mining, non-metallic industry, other industries, etc.
Applied materials: lithium iron phosphate, ternary materials, graphite, polycrystalline silicon, monocrystalline silicon, powdered sugar, starch, salt, rice flour, milk powder, soybean milk, egg powder, soy sauce, fruit juice, tea, brewed drinks, dairy products, candy, snacks , quick-frozen food, condiments, protein, food additives, industrial pharmaceuticals, traditional Chinese medicine powder, granular pills, pellets, resins, coatings, cosmetics, paints, aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, two Manganese oxide, electrolytic copper powder, electromagnetic material, grinding powder, refractory material, kaolin, lime, alumina, heavy calcium carbonate, quartz sand, waste oil, wastewater, dyeing and finishing wastewater, papermaking, additives, activated carbon, etc.

After Sales Service
Our Team & Service

Basis service
1.Your sample material can be free analysis in our laboratory.
2.24 hours a week online & quick response within 12 hours.
3.Booking hotel and ticket for customers and Free transportation during visit our factory.
4. Production lead time and delivery time guaranteed.
Customized services
1.Professional R & D team to develop the new products as you requirements.
2.Help high-end customers to develop the local market
3.All packing and shipping can customized as per your requirements.
After-sale services
After customers received the goods,if have any questions or quality problems, Our customer service Dept. will be always available.

Contact us and let us create win-win business !

---
