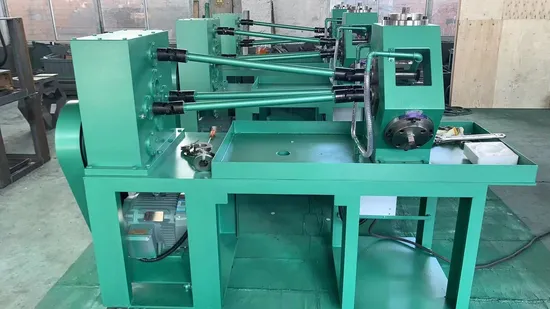

Fin Tube Machineextruded Fin Tube Machineeconomic Extruded Fin Tube Machine

Product Description

Product Description

-Tool holder and tool holder body adopt advanced dual-circular-key structure, big torque withstanding, accurate and reliable displacement.
- Tool holder adopts split type design, convenient for blade debugging, cleaning & fixing.
- Blade spindle bushing adopts special taper sliding bearings brings max. bushing utilization.
- Universal joints and spindles are of spline linking; And coolant cooling tank is separate to main rolling machine.
- Special extruding blade design, high efficient, long blade life.

SPECIFICATIONS OF EXTRUDED FIN TUBES
Base tube material	carbon steel, stainless steel, copper
Base tube diameter range	Φ15~45mm
Fin material	aluminum or copper
Extruded fin thickness	0.3~0.7mm
Extruded fin height	max. 16mm (aluminum) / 8mm (copper)
Max. OD of finned tube	Φ77mm (aluminum) / Φ50mm (copper)
Applicable fin pitch	FPI 7, FPI 8, FPI 9, FPI 10, FPI 11
Max. fin tube length	15m

---
