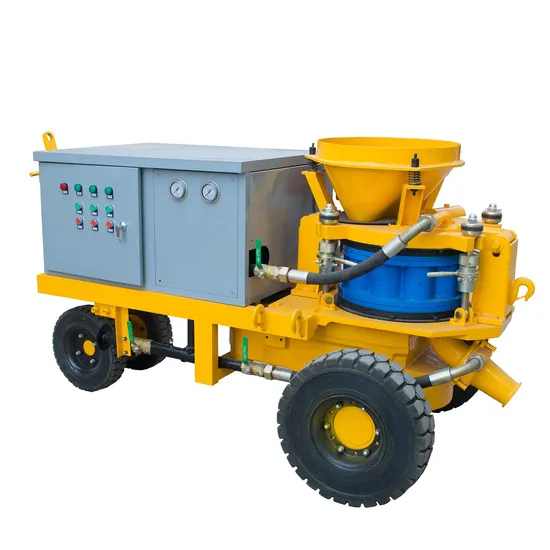

Lsz3000e Underground Coal Shotcrete Machine

US$5,000.00-12,000.00 1 Set (MOQ)

Basic Info.

Model NO.

LSZ3000E

Machining Process

Welded Molding Machine

Structure

Rotor Type

Productivity

5m3/H

Feeding Height

1.17m

Certification

ISO9001: 2000, CE, SGS

Condition

New

Color

Customized

Product Name

Wet Shotcrete Machine

Drive Mode

Electric Motor

Max. Horizontal Conveying Distance

35m

Max. Aggregate Size

15mm

Concrete Slump

8 -15cm

Conveying Hose Inner Diameter

51/ 64mm

Operating Air Pressure

0.3-0.6MPa (43-86psi)

Air Consumption

10~ 12m3 /Min

Main Motor Power

7.5kw(10HP)

Dosing Pump Output

17.5 -88L /H

Rotor Speed

11r/Min

Transport Package

Plastic Wrap, Plywood Case, Free-Fumigation

Specification

2.05*0.95*1.18m

Trademark

Leadcrete

Origin

China

HS Code

84743100

Production Capacity

5000 Sets/Year

Product Description

LSZ3000E Underground coal shotcrete machine
1. Description:
LSZ3000 shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix. LSZ3000A due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.
The machine is suitable either for manual spraying or by means of a robotic arm.
Basic: Electric drive can be combined with tyre chassis.
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel
2. Application:
LSZ3000 is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.
3.Product Parameter:

Drive type	electric motor drive
Rated Output	5m3 /h
Max. Horizontal Conveying Distance	35m
Max. Aggregate Size	15mm
Concrete Slump	8 -15cm
Conveying Hose Inner Diameter	51/ 64mm
Operating air Pressure	0.3-0.6MPa (43-86PSI)
Air Consumption	10~ 12m3 /min(357-430CFM)
Main Motor Power	7.5kW(10hp)
Dosing Pump	LH-15
Dosing Pump Rated Pressure	0.6MPa(86PSI)
Dosing Pump Output	17.5 -88L /h
Voltage	220V, 380V, 440V, 660V, 50Hz/60Hz
Material Charging Height	1.17m
Rotor Speed	11r/min
Overall Dimension(L × W × H)	2.05× 0.95× 1.18m
Net Weight	1200kg

3. Features:
It can both for dry and shotcrete concrete spraying.
