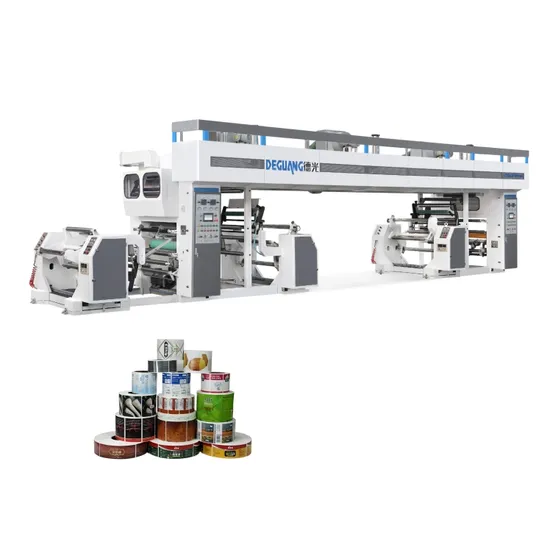

Plastic Film Craft Paper Aluminum Foil Dry Laminating Machine for Food Packaging

US$33,000.00
1 Piece
US$32,000.00
2 Pieces
US$31,000.00
3+ Pieces

Basic Info.

Model NO.
GSGF800.1100A
Classification
Dry Laminating Machine
Application
Packaging Paper, Film Material
Driven Type
Mechanical
Automatic Grade
Automatic
Membrane Material
Plastic Film,Paper,Non Woven,Alu Foil
Plastic Film Mulching Modes
Hot Laminating
Performance
Anti Wrinkle
Frame
Iron
Width
1100mm
Unwinding Diameter
600mm
Rewinding Diameter
600mm
Roll Change
Automatic
Speed
150m/Min
Heating
Electric Heating
Power
100kw
Voltage
380V 3 Phase
Weight
9400kg
Dimension
11500*2800*3200mm
Transport Package
Film Packing
Specification
SGS, CE
Trademark
Deguang
Origin
China
HS Code
84778000
Production Capacity
30 Sets/Month

Product Description

Plastic Film Craft Paper Aluminum Foil Dry Laminating Machine For Food Packaging
Application:
This machine is used to laminate bopp, pet, cpp, pe, paper, aluminum foil, non woven ect.,
it is widely used in soft packaging like food packaging.
Feature: 1. Turret type unwinder and rewinder with automatic splicing and cutting 2. Unwind with ultrasonic EPC device 3. Anilox roller inverter motor control 4. Pneumatic pressing roller and doctor blade 5. Pneumatic oven, oven exit has ultrasonic EPC device 6. Heat recycling system, air exhaust system 7. Heating roller filled with thermal oil 8. Laminating roller inverter motor control
9. Equipped with water cooling roller
10. Floating roller to adjust tension
Specification:
Model 800/1100mm
Max width of material 800/1100mm
Laminating layer 2 layer
Unwind and rewind diameter 600mm
Max speed 150m/min
Oven temperature 80ºC
Heating roller temperature 70-90ºC
Total power 87/100kw
Weight 8500/9400kg
Dimension 11500*2500/2800*3200mm

Laminating sample:
Machine details:
