Chinese Water Excavator for Sale / Amphibiou Excavator

Product Description

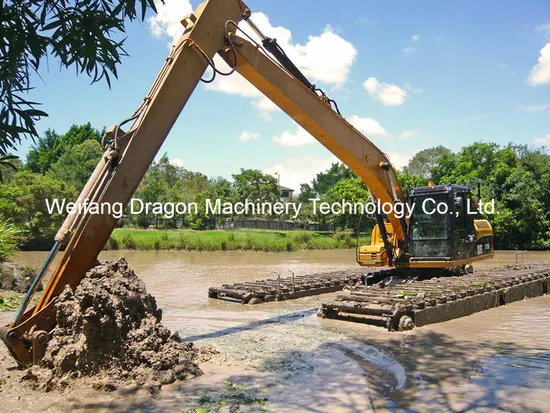

DRAGON amphibious excavator is one multifunctional excavator which is suitable for working in swamp, shallow water and land area. This kind of excavator is widely used for dredging work in rivers and lakes, resources and environment protection in wetlands and coastal areas.
The track shoe and floating pontoon are strengthened specially to enable the amphibious excavator work in hard environment.
There is one replaceable joint unit between the excavator and floating pontoon which can make it equip with different brands of excavators.
To increase the stability of the amphibious excavator, two spuds can be installed on the floating pontoons.
The amphibious excavator can work with differend attachments which enlarges the working range.
Specification

Model	DGAME15	DGAME20	DGAME26	DGAME30
Weight	15000 kg	20000 kg	26000 kg	30000 kg
Bucket Capacity	0.25 m3	0.4 m3	0.9 m3	0.9 m3
Installed Power	56.5 kw	89.3 kw	114 kw	114 kw
Walking Speed	3.8 km/h	3.1 km/h	3.2 km/h	3.1 km/h
Rotating Speed	11 rpm	11 rpm	11 rpm	11 rpm
Grade Ability	30 o	30 o	30 o	30 o
Max Digging Depth	5870 mm	7360 mm	5700 mm	7360 mm
Max Digging Radius	8990 mm	10810 mm	9920 mm	10810 mm
Pontoon Dimension	6640 x 1300 x 1420 mm	7170 x 1490 x 1700 mm	8080 x 1490 x 1700 mm	8290x 1800 x 1650 mm

---
