New Upgrade-5-Axis CNC Tool Grinder

Product Description

Product Description
Product Description
DM200 five axis CNC tool grinder can process cutting tools made of high-speed steel, hard alloy and stainless steel. Milling cutter: flat head cutter, taper flat head cutter, round nose cutter, taper round nose cutter, ball head cutter and taper ball head cutter. Reamers: straight slot reamers, taper straight slot reamers, spiral reamers, taper spiral reamers. Drill bits: straight groove drill, spiral groove drill, straight groove step drill, spiral groove step drill.

Scope of use of DM200


Product Parameters

Parameters of DM200
1	X axis travel	800mm
2	Y axis travel	400mm
3	Z axis travel	220mm
4	A axis travel	Consecutive 3 6 0 °
5	C axis travel	220°
6	X axis positioning accuracy	0.005mm
7	Y axis positioning accuracy	0.005mm
8	Z axis positioning accuracy	0 005mm
9	A axis positioning accuracy	0.005°
10	C axis positioning accuracy	0.005°
11	Repeat positioning accuracy	±0 . 00 2 mm
12	Minimum units	0.01°
13	Spindle rated power	1 2KW; torque 2 0 NM; ( double extension spindle)
14	Speed of main shaft	0 - 8000 RPM/min
15	Number ofgrind wheels installed	6-8 pieces
16	Maximum wheel diameter	Φ150mm
17	Diameter of Grinding Wheel Rod	HSK5 0E
18	Taper of workpiece shank	BT50
19	Maximum grinding length	Blade length: 1 6 0 mm; total Length: 2 0 0 mm
20	Minimum handle diameter	Φ3mm
21	Maximum workpiece shank diameter	Φ20mm
22	Maximum l ength of workpiece	Φ150mm
23	Working pressure	0 6~0 8 MPa
24	Cooling fluid flow	85L/min
25	Total rated power of equipment	2 2 kw ( three- phase AC3 8 0 V)
26	Total equipment weight	5000kg

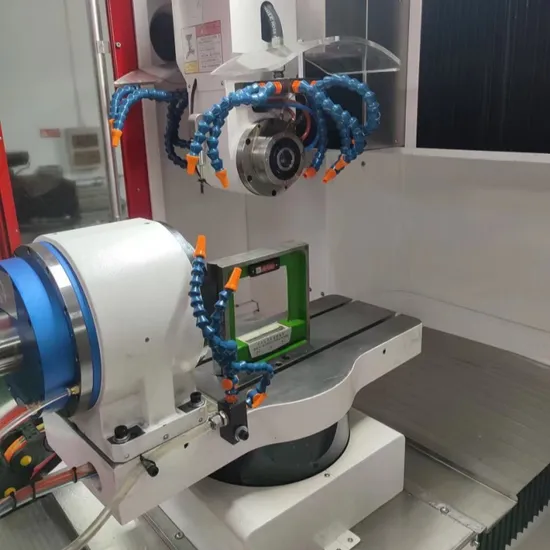

Detailed Photos

Charateristics
1. The machine is equipped with friendlt HMI software,not only G code programming, but also can use tool software.The system is safe, stable, convenient and resistant to electromagnetic interference.The program transmission between CNC and PC can be realized by Ethernet interface and USB2.0,and the productivity can be greatly improved by starting with the shortest processing lead time.
2.Equipped with 3D simulation software,the necessary parameters of tool machining are displayed in the way of dialog box.After the parameters are input, the tool simulation can display the
3D graphics of tool and the grinding steps of machine tool.The anti-collision function of the software is used to avoid the collision in the actual process.
3.The corresponding software module can be used to process all kinds of cutting tools.By selecting and installing probes,the workpiece can be automatically measured and the tool wear can be compensated.
4.Heavy-duty design,high-power,gantry type closed structure,good rigidity,high strength,good stability.
5.Original imported linear guide,ball screw,A and C direct drive motor and other important componants to ensure high accuracy,high sensitivity and good stability.
Packaging & Shipping

After Sales Service
1. The warranty period of the whole machine is one year for life.2. During the warranty period, all kinds of failures are repaired and free of charge in time, and all kinds of non-man-made damage to parts will be replaced free of charge in time.3. Outside the warranty period, the supplier provides lifelong paid maintenance services. If the parts are replaced, the supplier supplies the demand side at a cost price.
Company Profile
Demina mainly engages in mass production of CNC tool grinding machine and provides tool regrinding service. We have been in the field over 20 years. It is a national high-tech enterprise and a SRDI enterprise in Beijing.Our company's independently developed BT-150 series PCD tool grinding machine closely combines traditional tool grinding technology with software technology. On the basis of ensuring the accuracy of tool grinding, we have achieved CNC tool grinding technology, greatly improving the work efficiency of tool enterprises and effectively reducing their operating costs.
According to the different technical requirements of our customers, our BT-150 series PCD tool grinding machine have three types: manual action, manual and automatic integration, and CNC operation. Among them, the CNC tool grinder with specially developed software is in a leading position in the industry in China. In addition to providing high-quality products, we also provide customers with comprehensive and high-quality after-sales technical support.

---
