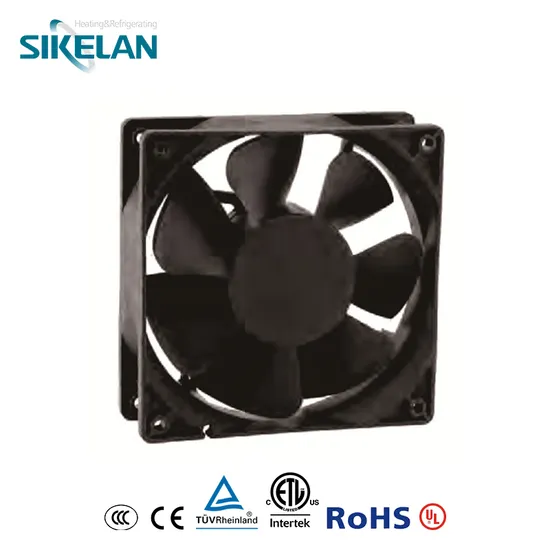

Efficiency Refrigerator Cooler Axial Flow Fan 12V DC Brushless Cooling Fan

Product Description

Product Description MD9225 DC Fan MOTOR specifically designed for refrigeration and air conditioning systems. lt provides superior efficiency, precise control, and long-lasting reliability for demanding applications.
Features:
1. Characteristic
Characteristic is measured by rated voltage, rated frequency, the value of the characteristic must be in standard value in the characteristic table.
2. Insulation
a. Insulated resistance
The insulated resistance must be more than 200MQ at the time of normal temperature and humidity.
b. Electric strength
The motor is under 1500VAC for one minute or 1800VAC for one second.
c. Damp proof
The insulated resistance must be 100MQ or more when the test piece is exposed to the temperature of 40±3C and humidity of 90% for 48 hours.
3. Life
When driving at the normal rated ,normal load conditions, continuation drive is possible, the operation time is 60000 hours or more.
4. Supply voltage
When the supply voltage changes at the rate of±10%, the motor keeps operating normally.
5. The lead wire tension strength
When the lead wire is pulled at the force of 5.0N per one wire for 3 second, it must that no failure occurs on the connection.
6. Temperature condition
The temperature for use:-40ºC~60ºC .
7. Relative humidity
The relative humidity in the dampest month is 90% (The lowest temperature every month is 25ºC or less.)
8. Noise
When the motor is operating under no load, the noise is less than 45db(A)
Measuring Manner: Taking the corresponding motor to the Un-echoic Room, obtains internal environment noise is 10dB first, again uses a decibel reflectoscope reflector to survey the motor's sound, demonstrated the data subtracts the environment noise, is the motor's noise.
As long as you are a manufacturer of super-market refrigeration equipements, or beverage cabinets, or beer coolers etc, you will be in need of our electric motors for Fan.
Product Parameters MD9225 Motor Fan Parameters:

MODEL	Voltage V	Maximum load	SPEED RPM	Minimum noise dB(A)	Minimum vibration mm/s	Maximum power W	Maximum efficiency %
MD9225	12/24/48VDC	/	300-2500	36.5	1.0	5	70

Our EC Brushless Motors Technical Parameters:

Technical Parameter
Nominal voltage range	220-240VAC,100-240VAC,50/60Hz
Rotation speed range	300- 1800 rpm
Material	PBT
Airflow direction	Air exhaust or airintake (depending on impeller)
Direction of rotation	CCW(view on drive end)
Degree of protection	IP65
Insulation class	"B" VD, "F" UL
Installation position	Any
Mode of operation	Continuous operation (S1)
Bearings	Maintenance-free ball bearing system
Motor protection	By electronics
Electrical hook-up	Power cables
Protection class	II(without grounding conductor)
Approvals	CCC; EAC;VDE,EN 60335-2-24,EN 60335-2-89,EN 60335-1
Fitting of attachments	Guard grille and wall ring are attached to the projecting thread ends on the
Mounting of axial impeller	A plastic adapter with catching peg and M4 screw is used to secure the impeller on the motor shaft
Ambient temperature	-40ºC-50ºC

We continuously improve and pursue products that are more energy-efficient, stable, popular, and environmentally friendly. Compared to traditional covered pole motor products, our motors has obvious advantages in high-efficiency and energy-saving electrodes.
→Click to View More Electric Motors Products!!!
Company Profile
We have our own design, research and development, testing equipment, and production line. The cost-effectiveness and after-sales service of our products are guaranteed, and we can provide technical support and customized services!
Exhibition
Certifications With abundant technique force,we have our own researching, developing, manufacturing, inspecting and testingcenters, and imported the international advanced high-tech equipments. Our company has passed the ISO9001,ISO14001,OHS18001 international management system certificates. The products have got UL,ETL,CE,CB,and CCC certificates. Our products are not only selling strongly in more than 30 provincesand municipality,but also largely exporting to Europe,America,Australia,Middle East, Africa and South Asia. We have won an excellent reputation from the customers and friends by our product quality,price versus performance ratio and service.
FAQ Q1: Are you a manufacturer or trader?
A1: Zhejiang Maidi Refrigeration Technology Co., Ltd. is a Hi-tech enterprise. We own the standard plant and office building which covering 21, 000 square meters. With abundant technique force, we have our own researching, developing, manufacturing, inspecting and testing centers, and imported the international advanced equipments.
Q2: How to replace refrigerator ec motor?
A2: We have a professional team of engineers who provide technical support and online guidance on product installation and replacement.
Q3: How do you ensure quality?
A3: We have a dedicated product research and testing center with authoritative quality management system certification: ISO9001/ISO14001/OHS18001.
Q4: How much does a refrigeration part cost?
A4: Factory price for you, not cheapest but the lowest at the same quality.

---
